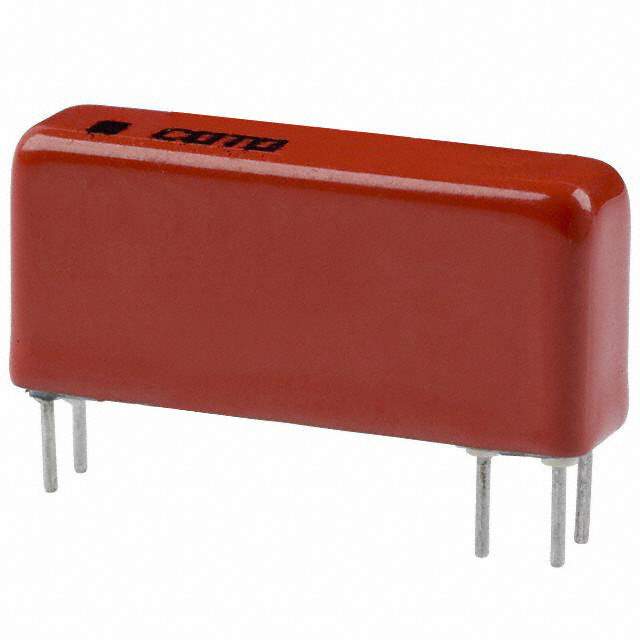

2341-05-000 Real Image
Same model may have multiple batches, images only for reference.

2341-05-000

Part No 2341-05-000
Manufacturer Coto Technology
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPDT 500MA 5V /
Datasheet
2341-05-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr Coto Technology
Series 2300
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 21.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.5 ms
Release Time 0.5 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 230 Ohms
Base Product Number 2341
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Names 234105000,306-1107
Standard Package 50
Win Source Part Number 1206265-2341-05-000
Ultra Librarian 3D Model Ultra Librarian 2341-05-000 CAD Model

Description

The Coto Technology 2300 series 1206265-2341-05-000 is a SPDT (1 Form C) non-latching reed relay with a coil voltage of 5VDC and a coil resistance of 230 Ohms.

  • Type: SPDT (1 Form C), Non-Latching Reed Relay
  • Coil Voltage: 5VDC
  • Coil Resistance: 230 Ohms
  • Mounting: Through-Hole
  • Contact Rating: 500mA
  • Switching Voltage: 200VAC/200VDC
  • Operate Time: 0.5ms
  • Release Time: 0.5ms
  • Must Operate Voltage: 3.8VDC
  • Must Release Voltage: 0.4VDC
  • Operating Temperature: -20°C to 85°C
  • Seal: Hermetically Sealed
  • REACH: Unaffected
