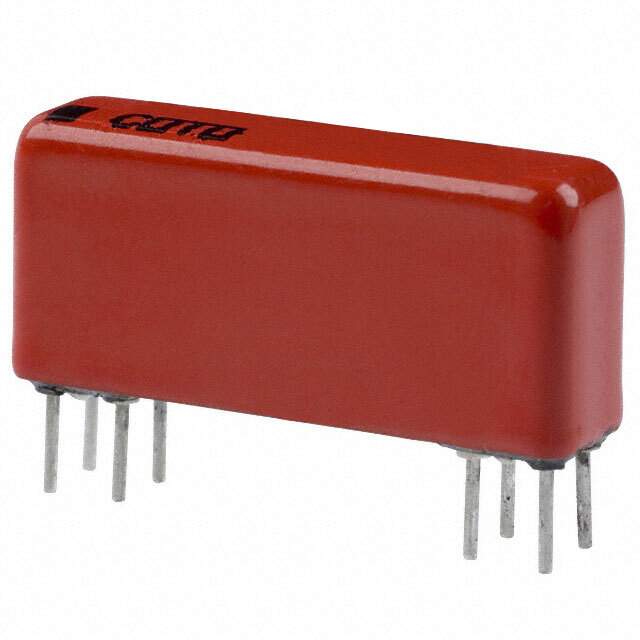

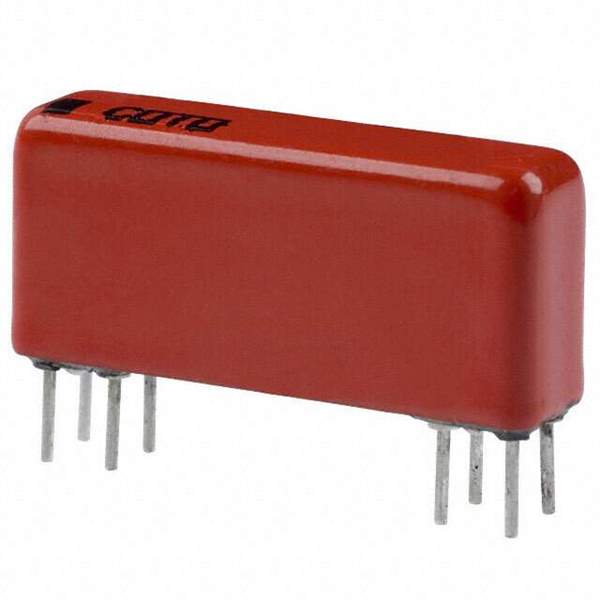

2342-05-000 Real Image
Same model may have multiple batches, images only for reference.

2342-05-000

Part No 2342-05-000
Manufacturer Coto Technology
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED DPDT 250MA 5V /
Datasheet
2342-05-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr Coto Technology
Series 2300
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 250 mA
Switching Voltage 100VAC, 100VDC - Max
Coil Current 28.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.4 VDC
Operate Time 1.5 ms
Release Time 2 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 175 Ohms
Base Product Number 2342
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Names 234205000,306-1111
Standard Package 50
Win Source Part Number 1016068-2342-05-000
Ultra Librarian 3D Model Ultra Librarian 2342-05-000 CAD Model

Description

The 2300 series reed relay is a reliable component for various applications.

  • Termination Style: PC pin
  • Package: Tray
  • Contact Form: DPDT (2 Form C)
  • Coil Resistance: 175 Ohms
  • Coil Current: 28.6 mA
  • Operate Time: 1.5 ms
  • Coil Type: Non-latching
  • Coil Voltage: 5VDC
  • Contact Rating: 250 mA
  • Switching Voltage: 100VAC and 100VDC
  • Release Time: 2 ms
  • Must Operate Voltage: 3.8 VDC
  • Must Release Voltage: 0.4 VDC
  • Operating Temperature: -20°C ~ 85°C
  • Manufacturer: Coto Technology
