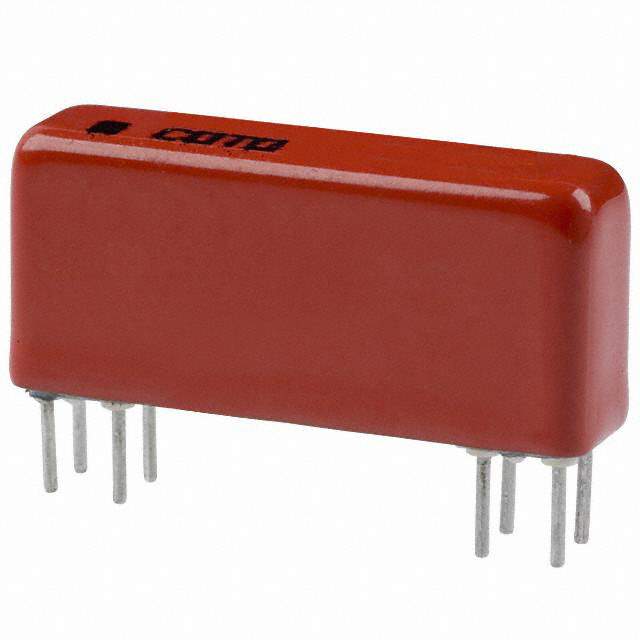

2332-05-010 Real Image
Same model may have multiple batches, images only for reference.

2332-05-010

Part No 2332-05-010
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED DPST 500MA 5V
Datasheet
2332-05-010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 2300
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 28.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.5 ms
Release Time 0.15 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 175 Ohms
Base Product Number 2332
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1350272-2332-05-010
Ultra Librarian 3D Model Ultra Librarian 2332-05-010 CAD Model

Description

The 2300 series reed relay is a reliable component for various applications. Coto Technology

  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: DPST-NO (2 Form A)
  • Coil Resistance: 175 Ohms
  • Coil Current: 28.6 mA
  • Operate Time: 0.5 ms
  • Coil Type: Non-Latching
  • Coil Voltage: 5VDC
  • Contact Rating: 500 mA
  • Switching Voltage: 200VAC, 200VDC
  • Release Time: 0.15 ms
  • Must Operate Voltage: 3.8 VDC
  • Must Release Voltage: 0.4 VDC
  • Operating Temperature: -20°C ~ 85°C
