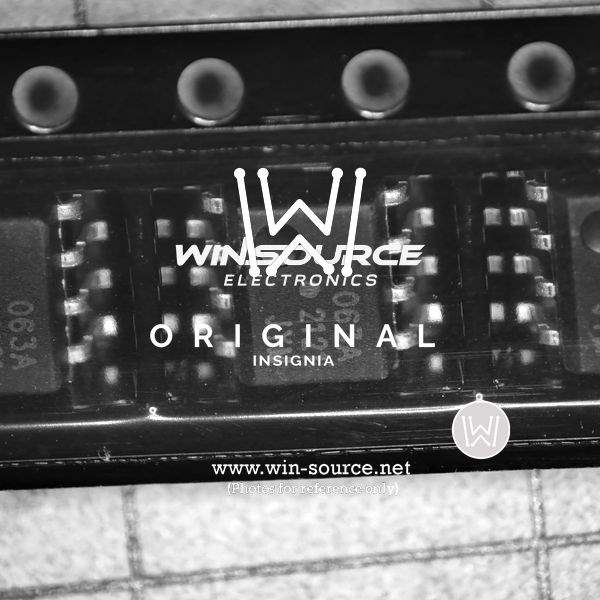

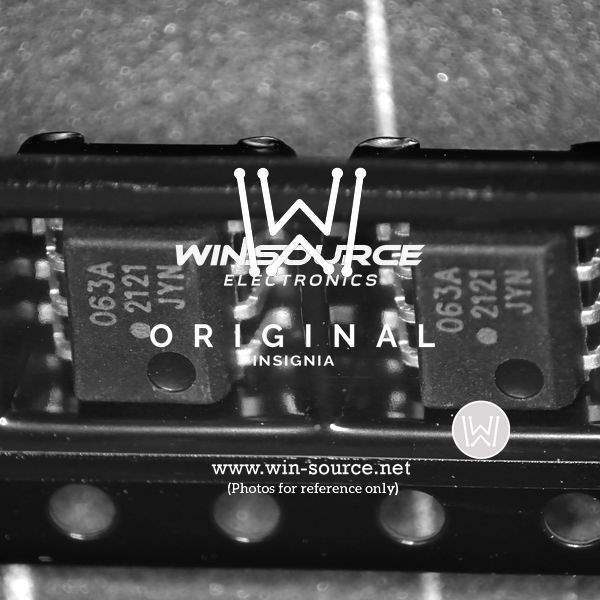

HCPL-063A-500E Broadcom Limited HCPL-063A-500E Real Image HCPL-063A-500E Real Image1 HCPL-063A-500E Real Image2
Same model may have multiple batches, images only for reference.
HCPL-063A-500E Broadcom Limited HCPL-063A-500E Real Image HCPL-063A-500E Real Image1 HCPL-063A-500E Real Image2
HCPL-063A-500E Broadcom Limited HCPL-063A-500E Real Image HCPL-063A-500E Real Image1 HCPL-063A-500E Real Image2
Same model may have multiple batches, images only for reference.

HCPL-063A-500E

Part No HCPL-063A-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV 2CH OPEN COLL 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 1kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Rise and Fall Time 42ns, 12ns
Forward Voltage 1.3V
Continuous forward current- Max 10mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 1042541-HCPL-063A-500E
Family Name HCPL-063A
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Philippines, Singapore
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian HCPL-063A-500E CAD Model

Description

The Broadcom Limited HCPL-063A-500E is an isolator that comes in a reel - TR package with SMD (SMT) mounting.

  • Manufacturer: Broadcom Limited
  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
  • Output Type: Open Collector, Schottky Clamped
  • Data Rate: 10MBd
  • Forward Voltage: 1.3V
  • Input Type: DC
  • Number of Channels: 2
  • Inputs Side 1: 2
  • Inputs Side 2: 0
  • Common Mode Transient Immunity: 1kV/μs
  • Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
  • Isolation Voltage: 3750Vrms
  • Family Name: HCPL-063A
  • Status: Active
  • Operating Temperature Range: -40°C to 85°C
  • Case / Package: 8-SO Tall
  • Supply Voltage: 4.5 V to 5.5 V
  • Rise Time: 42ns
  • Fall Time: 12ns
  • Channel Output Current: 50mA
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1500
