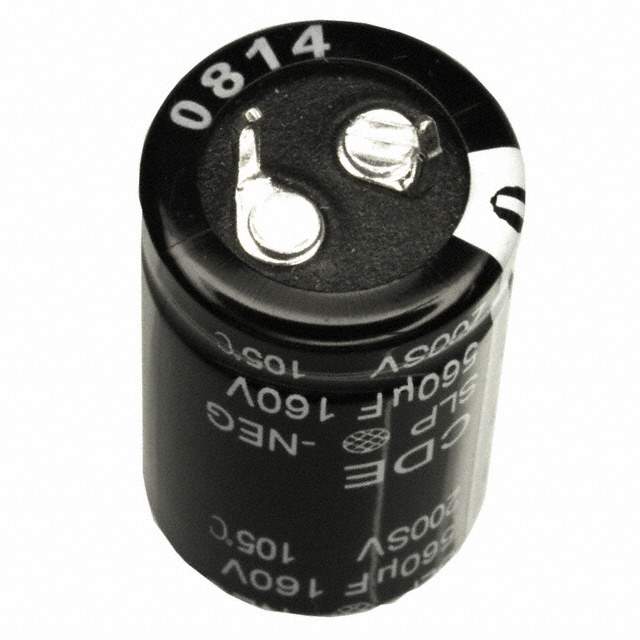

SLP391M200A5P3

Name: SLP391M200A5P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307935
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLP391M200A5P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLP391M200A5P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLP0712TE (750W)
Package	Bulk
Capacitance	390 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	510mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.35 A @ 120 Hz
Ripple Current @ High Frequency	1.98 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307935-SLP391M200A5P3
Ultra Librarian 3D Model	Ultra Librarian SLP391M200A5P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLP391M200A5P3 is a radial, can-snap-in aluminum electrolytic capacitor that is ideal for general-purpose applications.

Capacitance: 390 µF
Voltage Rating: 200 V
Tolerance: ±20%
ESR: 510mOhm @ 120Hz
Ripple Current (Low Frequency): 1.35 A
Ripple Current (High Frequency): 1.98 A
Height: 1.378" (35.00mm)
Diameter: 0.866" (22.00mm)
Lifetime: 3000 hours @ 105°C
Temperature Range: -25°C to 105°C
Polarized: Polarized
Lead Spacing: 0.394" (10.00mm)
