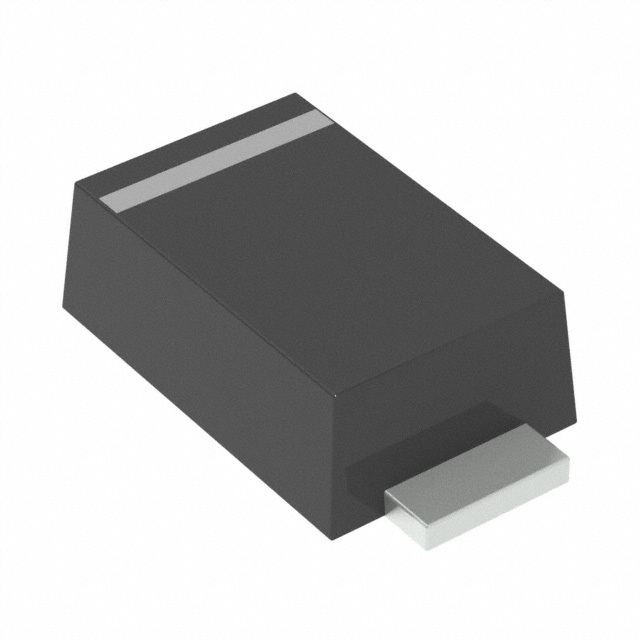

Same model may have multiple batches, images only for reference.
ACGRTS4007-HF Comchip Technology
Same model may have multiple batches, images only for reference.

ACGRTS4007-HF

Part No ACGRTS4007-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GP 1KV 1A TS/SOD123FL
Datasheet
ACGRTS4007-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Capacitance @ Vr, F 6pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package TS/SOD-123FL
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number ACGRTS4007
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368155-ACGRTS4007-HF
Ultra Librarian 3D Model Ultra Librarian ACGRTS4007-HF CAD Model

Description

The ACGRTS4007-HF is a standard rectifier diode from Comchip Technology.

  • Mounting Type: Surface Mount
  • AEC-Q101 Qualified: Yes
  • Maximum Reverse Voltage: 1000V
  • Average Rectified Current: 1A
  • Forward Voltage: 1V @ 1A
  • Recovery Time: Greater than 500ns
  • Reverse Leakage Current: 10µA @ Maximum Reverse Voltage
  • Capacitance: 6pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package: SOD-123F
  • ECCN: EAR99
