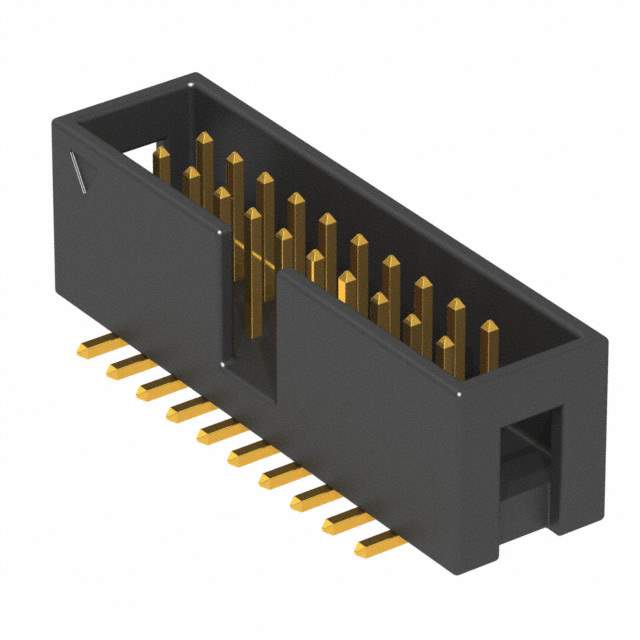

3020-20-0300-00 Real Image
Same model may have multiple batches, images only for reference.

3020-20-0300-00

Part No 3020-20-0300-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Datasheet
3020-20-0300-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.354" (9.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A (AC/DC)
Base Product Number 3020-20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3020-20-0300-00-ND,1175-1623
Standard Package 80
Win Source Part Number 1030926-3020-20-0300-00
Ultra Librarian 3D Model Ultra Librarian 3020-20-0300-00 CAD Model

Description

The 1030926-3020-20-0300-00 is a rectangular connector header from CNC Tech.

  • Connector Type: Rectangular Connector Header
  • Manufacturer: CNC Tech
  • Positions: 20
  • Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Design: Shrouded 4-wall
  • Features: Keying slot
  • Style: Board-to-cable/wire
  • Fastening Type: Push-pull
  • Contact Material: Brass
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 105°C
  • Applications: Computer and telecommunications equipment
