Same model may have multiple batches, images only for reference.

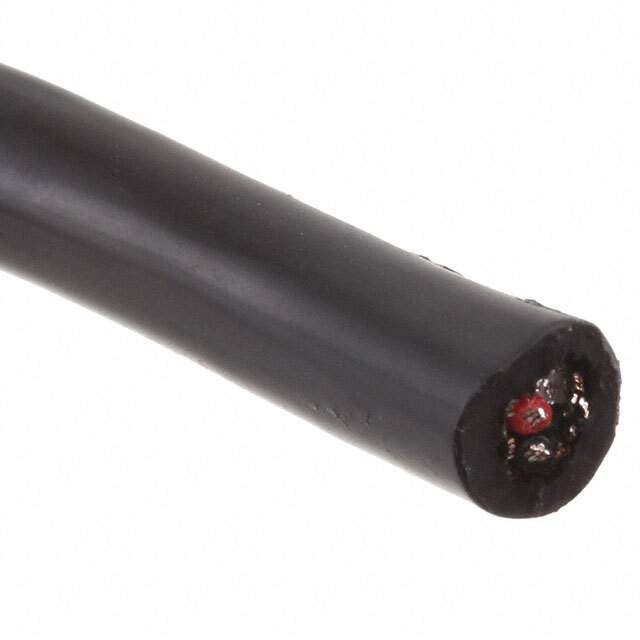

2725-2824-BL-01000-A Real Image
Same model may have multiple batches, images only for reference.

2725-2824-BL-01000-A

Part No 2725-2824-BL-01000-A
Manufacturer CNC Tech
Catalog Multiple Conductor Cables
Description CABLE 4COND 24/28AWG BLACK 25'  /  4 Conductor Multi-Conductor Cable Black 24 AWG, 28 AWG Foil, Braid 25.00' (7.62m)
Datasheet
2725-2824-BL-01000-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr CNC Tech
Package Spool
Cable Type Multi-Conductor
Number of Conductors 4
Wire Gauge 24 AWG, 28 AWG
Conductor Strand 7/0.0079", 7/0.0047"
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.177" (4.50mm)
Shield Type Foil, Braid
Length 25.00' (7.62m)
Jacket Color Black
Ratings UL Style 2725
Voltage 30 V
Temperature Range - Operating 80°C
Usage USB 2.0
Jacket (Insulation) Thickness 0.0366" (0.930mm)
Conductor Insulation High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Base Product Number 2725-2824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.2000
Other Names CN308-25
Standard Package 1
Win Source Part Number 1158351-2725-2824-BL-01000-A
Ultra Librarian 3D Model Ultra Librarian 2725-2824-BL-01000-A CAD Model

Description

The 2725-2824-BL-01000-A from CNC Tech is a USB 2.0 multi-conductor cable with 4 conductors.

  • Conductors: 4
  • Length: 25 feet
  • Voltage Rating: 30V
  • Shielding: Aluminum and tinned copper
  • Shield Type: Foil and braid
  • UL Style: 2725
