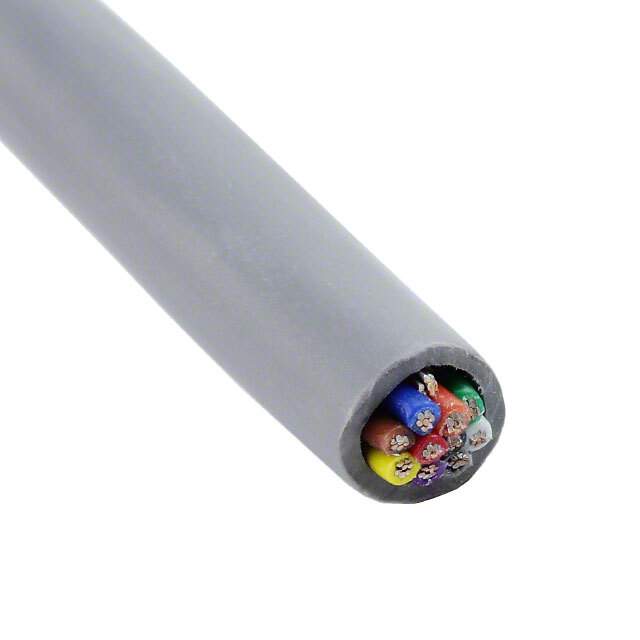

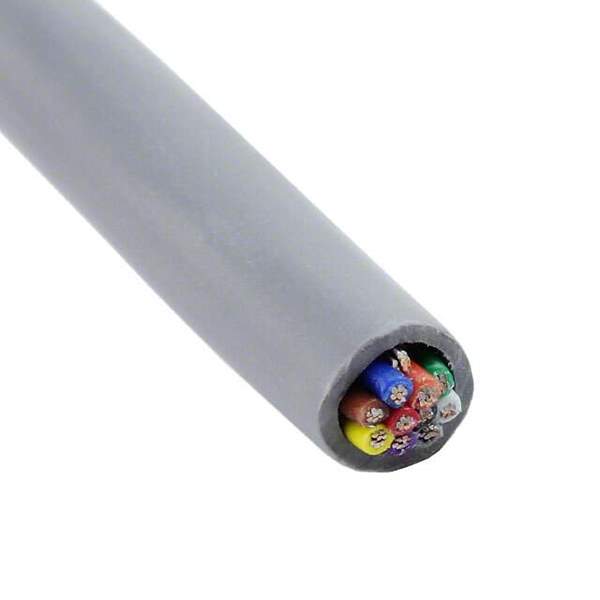

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 10
Wire Gauge 20 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.351" (8.92mm)
Shield Type Foil
Length 100.0' (30.5m)
Jacket Color Slate
Ratings UL Style 2464
Features Drain Wire, Rip Cord
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number M4666
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names M4666SL005,M4666 SL005-ND
Standard Package 1
Win Source Part Number 1122466-M4666 SL005
Ultra Librarian 3D Model Ultra Librarian M4666 SL005 CAD Model

Description

The Alpha Wire M4666 SL005 is a multi-conductor cable with a length of 100.0' (30.5m).

  • Length: 100.0' (30.5m)
  • Features: Drain Wire, Rip Cord
  • Shield Material: Aluminum
  • Cable Type: Multi-Conductor
  • Voltage: 300V
  • Number of Conductors: 10
  • Conductor Strand: 7/28
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket (Insulation) Diameter: 0.351" (8.92mm)
  • Shield Type: Foil
  • Jacket Color: Slate
  • Conductor Insulation: Poly-Vinyl Chloride (PVC)
  • Jacket (Insulation) Thickness: 0.0320" (0.813mm)
  • Shield Coverage: 100%
  • Operating Temperature: -20°C ~ 80°C
  • Application: Multiple conductor cable applications
  • Manufacturer Warranty: Yes
