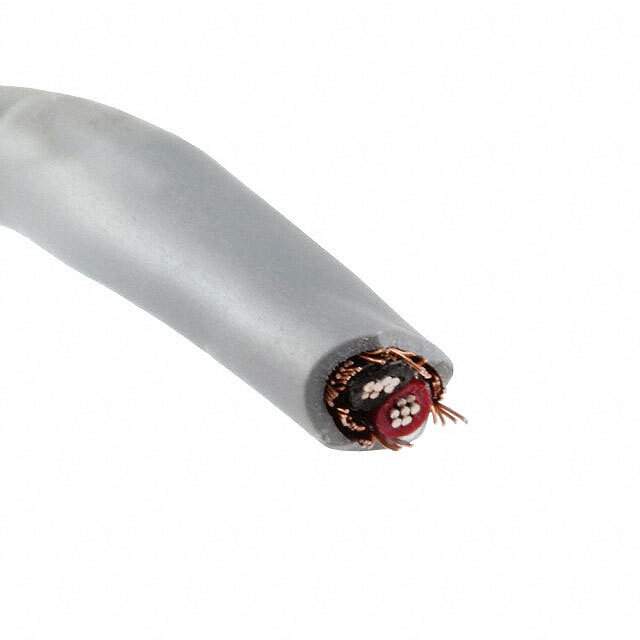

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 2
Wire Gauge 22 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.189" (4.80mm)
Shield Type Braid
Length 100.0' (30.5m)
Jacket Color Slate
Ratings UL Style 2095
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0200" (0.508mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Shield Coverage 85%
Base Product Number M3202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names M3202 SL005-ND,M3202SL005
Standard Package 1
Win Source Part Number 1017255-M3202 SL005
Ultra Librarian 3D Model Ultra Librarian M3202 SL005 CAD Model

Description

The Alpha Wire 22 AWG slate multi-conductor cable is a high-quality cable that is designed for use in a variety of applications.

  • Voltage Rating: 300V
  • Temperature Range: -20°C ~ 80°C
  • Number of Conductors: 2
  • Conductor Strand: 7/28
  • Conductor Material: Copper, Tinned
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Length: 100.0' (30.5m)
  • Shield Type: Braid
  • Shield Coverage: 85%
  • Packaging: Spool
