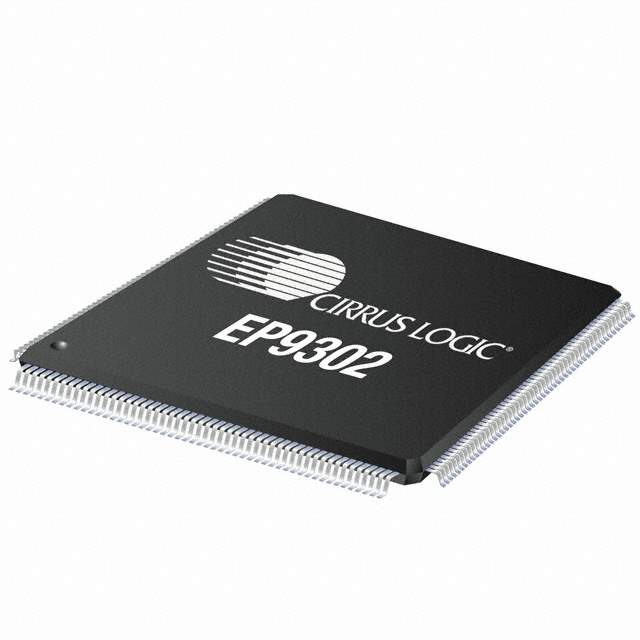

The EP9302-CQ is an ARM9-based embedded microprocessor manufactured by Cirrus Logic. It's designed for a wide range of applications, offering a balance of processing power, low power consumption, and integrated peripherals. The processor excels in applications requiring real-time performance and connectivity features.

Applications

• Industrial Control Systems: Used in programmable logic controllers (PLCs) and human-machine interfaces (HMIs).
• Networking Devices: Routers, switches, and network appliances benefit from its communication interfaces.
• Point-of-Sale (POS) Terminals: Its processing power and peripheral interfaces make it suitable for transaction processing.
• Medical Devices: Used in patient monitoring systems and diagnostic equipment where reliability is critical.
• Automotive Infotainment: Can be used for basic navigation and audio processing in vehicle systems.

Features

• ARM920T Core: Provides a balance of performance and power efficiency.
• Integrated Ethernet MAC: Enables easy network connectivity.
• USB Host and Device Controllers: Support a variety of USB peripherals.
• LCD Controller: Enables direct connection to LCD panels for display applications.
• Multiple Serial Ports: UARTs and SPI interfaces for communication with various devices.

Benefits

• Real-Time Performance: The ARM9 core provides sufficient processing power for real-time applications.
• Connectivity Options: Integrated Ethernet and USB interfaces simplify system integration.
• Low Power Consumption: Enables longer battery life in portable devices.
• Reduced System Cost: Integrated peripherals minimize the need for external components.
• Flexible Design: The wide range of interfaces and features allows for versatile application development.

Technical Specifications

Key technical specifications of the EP9302-CQ typically include:

• CPU Core: ARM920T
• Clock Speed: Varies depending on the specific variant, often around 200 MHz.
• Memory Interfaces: SDRAM, Flash memory support
• Ethernet: 10/100 Mbps Ethernet MAC
• USB: USB 2.0 Host and Device
• UARTs: Multiple UART interfaces
• SPI: SPI interface
• I2C: I2C interface
• LCD Controller: Integrated LCD controller with support for various display resolutions.
• Operating Voltage: Typically 3.3V or 1.8V for core and I/O.
• Package: LQFP or BGA package.
