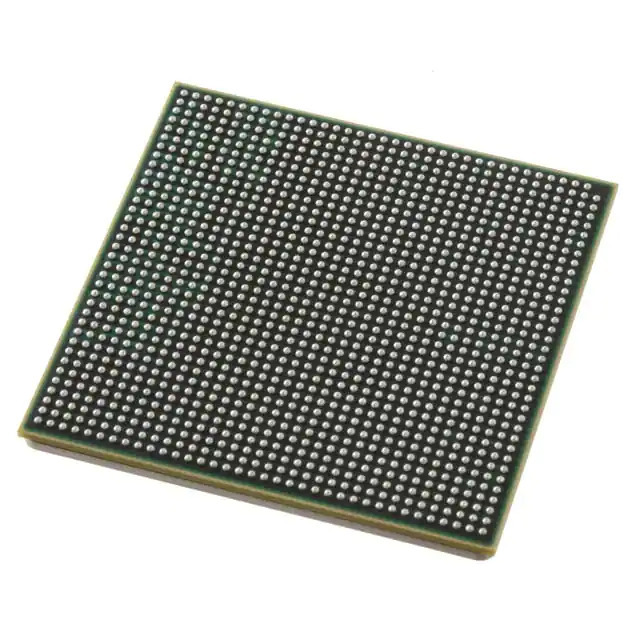

P5020NSN7TNB

Part No P5020NSN7TNB
Manufacturer NXP / Nexperia
Catalog Embedded - Microprocessors
Description IC MPU QORIQ P5 2.0GHZ 1295BGA / PowerPC e5500 Microprocessor IC QorIQ P5 2 Core, 64-Bit 2.0GHz 1295-FCPBGA (37.5x37.5)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP USA Inc.
Series QorIQ P5
Package Tray
Product Status Obsolete
Core Processor PowerPC e5500
Number of Cores/Bus Width 2 Core, 64-Bit
Speed 2.0GHz
Co-Processors/DSP -
RAM Controllers DDR3, DDR3L
Graphics Acceleration No
Display & Interface Controllers -
Ethernet 1Gbps (5), 10Gbps (1)
SATA SATA 3Gbps (2)
USB USB 2.0 + PHY (2)
Voltage - I/O -
Temperature Range - Operating 0°C ~ 105°C (TA)
Security Features -
Mounting Type Surface Mount
Package / Case 1295-BBGA, FCBGA
Supplier Device Package 1295-FCPBGA (37.5x37.5)
Additional Interfaces DUART, I²C, MMC/SD, SPI
Base Product Number P5020
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Win Source Part Number 1352881-P5020NSN7TNB
Ultra Librarian 3D Model Ultra Librarian P5020NSN7TNB CAD Model

Description

The P5020NSN7TNB is a high-performance, power-efficient processor from NXP Semiconductors, designed to meet the needs of the most demanding networking and telecommunications applications. This product is part of NXP's QorIQ P5 family, which is renowned for its advanced multi-core architecture, integrating the e5500 Power Architecture core with high-speed connectivity and an array of accelerators to boost performance in complex computing tasks.

Key Features

  • Core: The e5500 core operates at speeds up to 2.0 GHz, offering a balance of processing power and energy efficiency. It is built on a 64-bit Power Architecture, providing robust support for a wide range of software applications.
  • Cache: It features a large 1 MB L2 cache that enhances the data processing speed by reducing the time needed to access frequently used data and instructions.
  • Connectivity: The P5020NSN7TNB includes integrated high-speed interfaces such as PCI Express, Serial RapidIO, and Gigabit Ethernet, facilitating fast data transfer and communication with other devices and systems.
  • Security: Advanced security features are embedded, including a secure boot, encryption, and anti-tamper technology, ensuring the integrity and confidentiality of data.
  • Memory Support: It supports a range of memory types including DDR3 and DDR3L, providing flexibility for system designers to choose the optimal memory solution for their application.

Applications

The P5020NSN7TNB is ideal for a variety of applications in the networking and telecommunications sectors, including routers, switches, gateways, and network control planes. Its high-speed processing capabilities and security features also make it suitable for military, aerospace, and other high-reliability computing environments.

Environmental and Quality Standards

NXP's commitment to quality and environmental sustainability is evident in the P5020NSN7TNB, which is designed to meet rigorous industry standards. The processor is RoHS compliant and manufactured with a focus on energy efficiency and reduced hazardous substances, reflecting NXP's dedication to reducing the environmental impact of its products.
