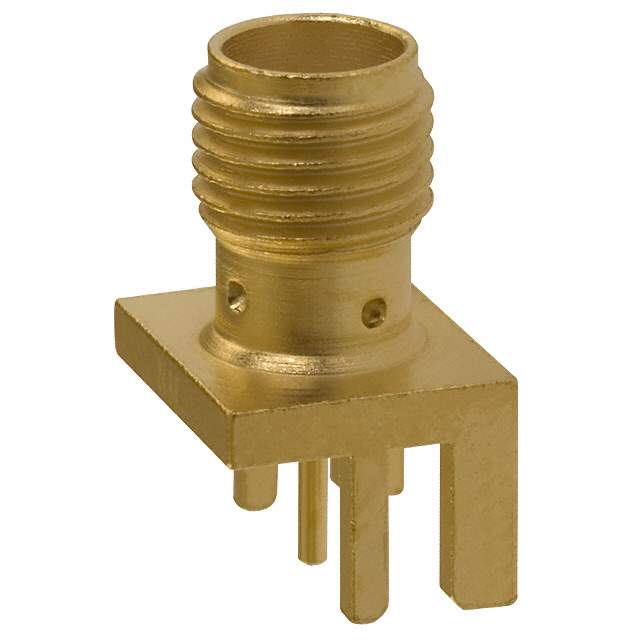

142-9701-801 Real Image
Same model may have multiple batches, images only for reference.

142-9701-801

Part No 142-9701-801
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
142-9701-801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features Non-Magnetic
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Copper Alloy
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 142-9701
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1429701801,J669
Standard Package 25
Win Source Part Number 1331967-142-9701-801
Ultra Librarian 3D Model Ultra Librarian 142-9701-801 CAD Model

Description

The Cinch Connectivity Solutions Johnson 142-9701-801 is a coaxial connector assembly that is non-magnetic.

  • Connector Type: Jack, female socket
  • Fastening: Threaded
  • Contact Termination: Solder
  • Connector Style: SMA
  • Voltage Rating: 335V
  • Frequency Max: 18 GHz
  • Housing Color: Gold
  • Number of Ports: One
  • Standard Package: 25
  • Mounting: Board edge and end launch
  • Impedance: 50Ohm
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold plating
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycles: 500
  • Operating Temperature Range: -65°C to 165°C
