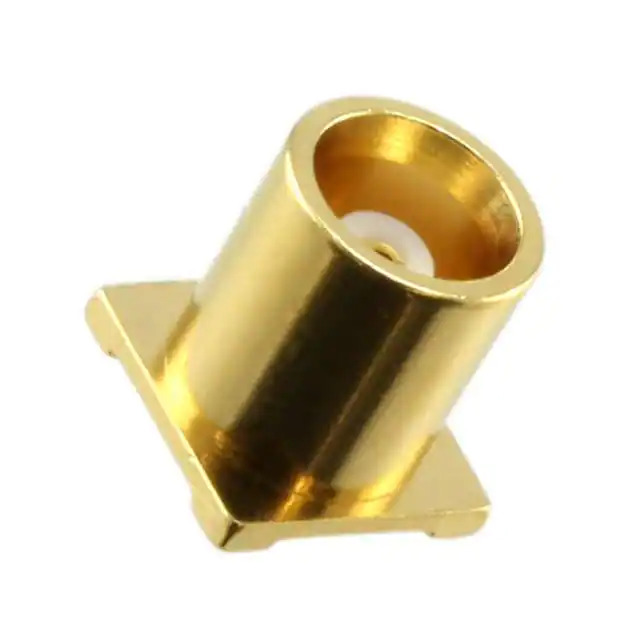

Same model may have multiple batches, images only for reference.

1-1337582-0

Name: 1-1337582-0
Brand: TE Connectivity
SKU: 1365229
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1337582-0
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN MCX JACK STR 50 OHM SMD / MCX Connector Jack, Female Socket 50Ohm Surface Mount Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	TE Connectivity AMP Connectors
Series	Greenpar
Package	Bulk
Product Status	Active
Connector Style	MCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Surface Mount
Mounting Feature	-
Cable Group	-
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Features	-
Housing Color	Gold
Ingress Protection	-
Center Contact Material	Phosphor Bronze
Includes	-
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	335 V
Mating Cycles	500
Insertion Loss	0.1dB
Base Product Number	1337582
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1365229-1-1337582-0
Ultra Librarian 3D Model	Ultra Librarian 1-1337582-0 CAD Model

Description

The TE Connectivity AMP Connectors coaxial connector (RF) assembly is a high-quality component for RF applications.

Category: Coaxial Connector (RF) Assemblies
Connector Type: Jack, Female Socket
Fastening Type: Snap-On
Temperature Range: -65°C to 165°C
Base Product Number: 1337582
Voltage Rating: 335V
Contact Termination: Solder
Body Material: Brass with Gold Finish
Product Status: Active
Manufacturer: TE Connectivity AMP Connectors
