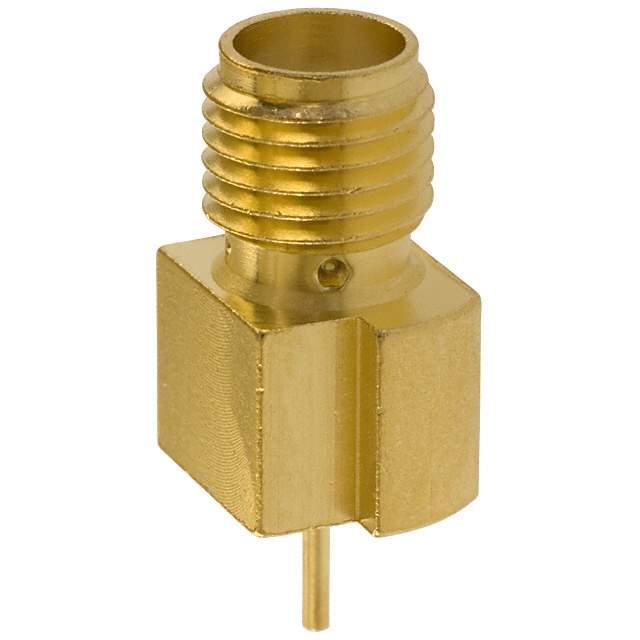

142-0721-881 Real Image
Same model may have multiple batches, images only for reference.

142-0721-881

Part No 142-0721-881
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style Board Edge, Cutout; Surface Mount
Fastening Type Threaded
Frequency - Max 18GHz
Number of Ports 1
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803303-142-0721-881
Ultra Librarian 3D Model Ultra Librarian 142-0721-881 CAD Model

Description

The Cinch Connectivity Solutions Johnson 803303-142-0721-881 is a female socket jack connector that is designed for surface mount and board edge mounting styles.

  • Fastening Type: Threaded
  • Contact Termination: Solder
  • Voltage Rating: 335V
  • Maximum Frequency: 18GHz
  • Housing Color: Gold
  • Ports: 1
  • Impedance: 50Ohm
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Temperature Range: -65°C ~ 165°C
  • MSL Level: 1 (Unlimited)
