Same model may have multiple batches, images only for reference.

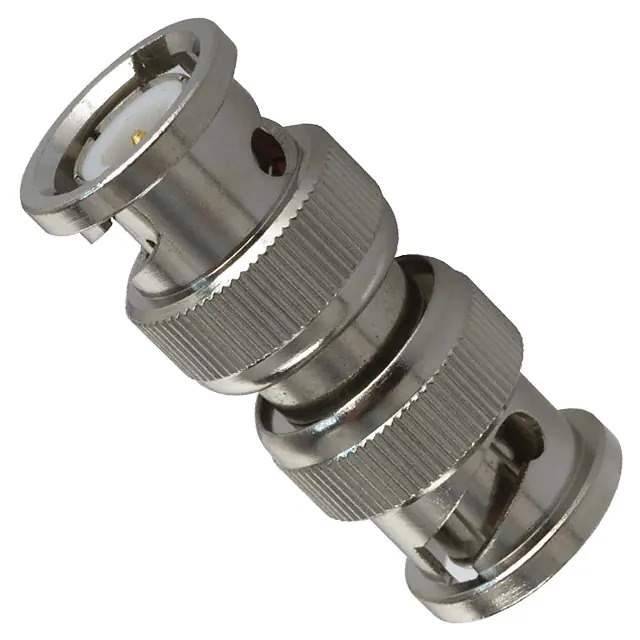

3533 Real Image
Same model may have multiple batches, images only for reference.

3533

Part No 3533
Manufacturer Pomona Electronics
Catalog Coaxial Connectors (RF)
Description CONN ADAPT PLUG-PLUG BNC 50 OHM
Datasheet
3533 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Pomona Electronics
Package Bulk
Product Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series BNC to BNC
Center Gender Male to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) BNC Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock, Bayonet Lock
Center Contact Plating Gold
Body Material Brass
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Standard Package 5 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 545584-3533
Ultra Librarian 3D Model Ultra Librarian 3533 CAD Model

Description

The 545584-3533 is a coaxial connector adapter designed for use in electronic systems.

  • Fastening Type: Bayonet lock
  • Style: Straight
  • Material: Brass
  • Center Contact Material: Brass with gold plating
  • Impedance: 50Ohm
  • Suitability: Suitable for use in RF applications
  • Temperature Range: -65°C to 165°C
  • Design: Designed for plug to plug conversion
  • Series: BNC to BNC series
  • Mounting: Suitable for free hanging (in-line) mounting
  • Status: Active product from Pomona Electronics
