242130 Amphenol-RF Division – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

242130

Part No 242130
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)

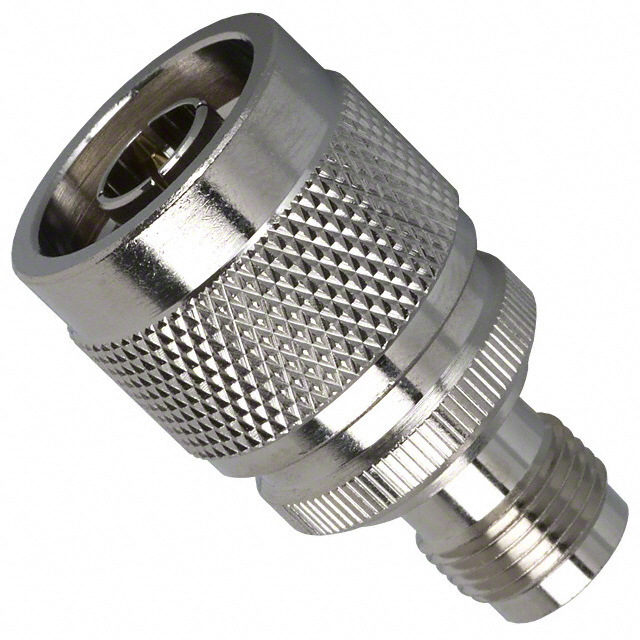

Description Adapter Coaxial Connector N Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Amphenol RF
Packaging Bag
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series N to TNC
Center Gender Female to Male
Convert From (Adapter End) N Plug, Male Pin
Convert To (Adapter End) TNC Jack, Female Socket
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 11 GHz
Center Contact Plating Gold
Body Material Brass
Body Finish Nickel
Center Contact Material Phosphor Bronze
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Base Product Number 2421
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1482033-242130
Ultra Librarian 3D Model Ultra Librarian 242130 CAD Model
