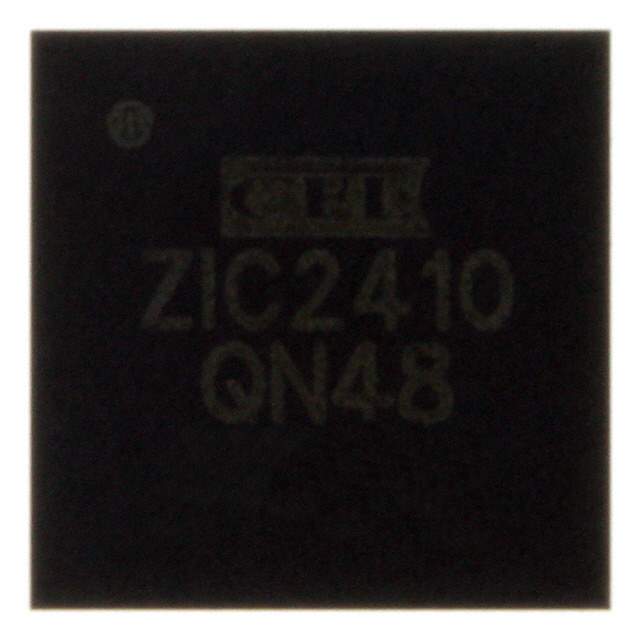

ZIC2410QN48 Real Image
Same model may have multiple batches, images only for reference.

ZIC2410QN48

Part No ZIC2410QN48
Manufacturer CEL
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 48-VFQFN
Datasheet
ZIC2410QN48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Bulk
Status Obsolete(EOL)
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol Zigbee
Modulation O-QPSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 8dBm
Sensitivity -98dBm
Memory Size 96kB Flash, 1kB ROM, 8kB RAM
Serial Interfaces I2S, SPI, UART
GPIO 22
Supply Voltage - Operating 1.35 V to 3.3 V
Current - Receiving 4.6mA
Current - Transmitting 33.8mA to 46.3mA
Temperature Range - Operating -40°C to 85°C
Dimension 48-VFQFN Exposed Pad
Win Source Part Number 107055-ZIC2410QN48
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ZIC2410QN48 CAD Model

Description

The CEL 107055-ZIC2410QN48 is a TxRx + MCU electronic component that operates @ a frequency of 2.4GHz.

  • Protocol: Zigbee
  • Memory Size: 96kB Flash, 1kB ROM, and 8kB RAM
  • Power Output: 8dBm
  • Sensitivity: -98dBm
  • Data Rate: Up to 1Mbps
  • Serial Interfaces: I2S, SPI, and UART
  • GPIO: 22
  • Dimension: 48-VFQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Supply Voltage: 1.35 V to 3.3 V
  • Category: RF/IF and RFID
  • Status: Obsolete
