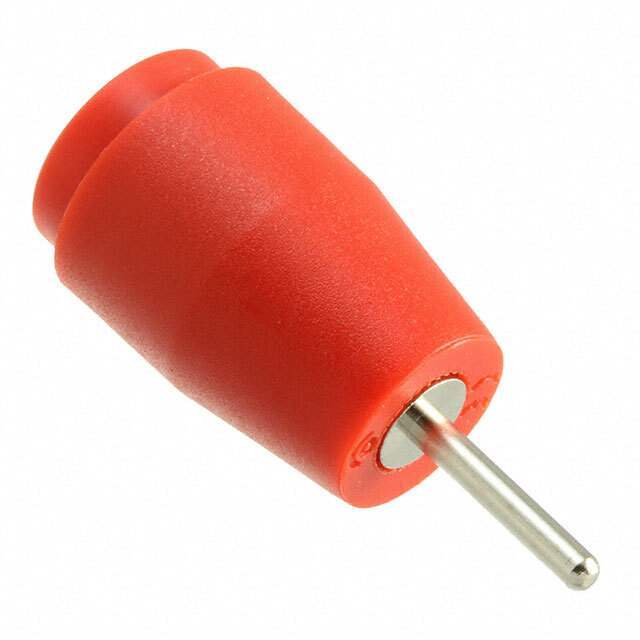

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202231-CT3149-2
Manufacturer Cal Test Electronics
Category Connectors, Interconnects -Banana and Tip -Connectors Jacks, Plugs
Series Cal Test
Package Bulk
Product Status Active
Type Banana Jack
Gender Female
Mounting Type Panel Mount, Through Hole
Termination Solder
Insulation Mating End Insulated
Ultra Librarian 3D Model Ultra Librarian CT3149-2 CAD Model

Description

The Cal Test Electronics Cal Test series is a banana jack connector designed for reliable and secure connections. Cal Test Electronics manufactures it.

  • Series: Cal Test
  • Connector Type: Banana Jack
  • Gender: Female
  • Insulation: Insulated Mating End
  • Mounting Type: Panel Mount, Through Hole
  • Termination: Solder
  • Product Status: Active
