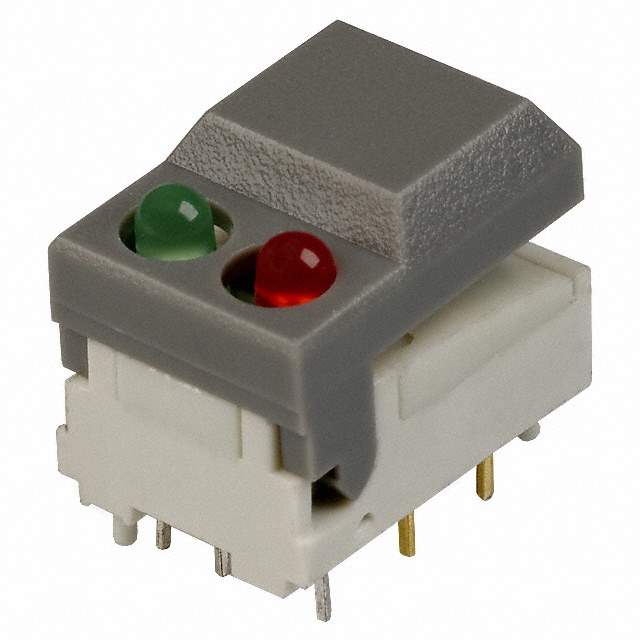

SER2LGYRDGNAUEE Real Image
Same model may have multiple batches, images only for reference.

SER2LGYRDGNAUEE

Part No SER2LGYRDGNAUEE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SER2LGYRDGNAUEE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Tray
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Gray
Illumination Type, Color LED, Red/Green
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SER2L
Other Names 401-1121,SE R 2L GY RD GN AU,2266-SER2LGYRDGNAUEE,*SER2LGYRDGNAUEE,SER2L GY RD GN AU EE,752030-3002,200820
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233296-SER2LGYRDGNAUEE
Ultra Librarian 3D Model Ultra Librarian SER2LGYRDGNAUEE CAD Model

Description

The SER2LGYRDGNAUEE is a pushbutton switch manufactured by C&K.

  • Series: DIGITAST series
  • Circuit: SPDT
  • Switch Function: on-on
  • Actuator Type: Square with a button
  • Voltage Rating: 24V DC
  • Current Rating: 10mA DC
  • Electrical Life: 500,000 cycles
  • Mechanical Life: Not specified
  • Illumination: LED that emits red and green light
  • Mounting: Through the hole
  • Temperature Range: -25°C to 85°C
  • REACH: Unaffected by REACH regulations
