Products specifications

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 12
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.279" (32.50mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA12H
Other Names *SDA12H0SBR,CKN9500DKR,CKN9500TR,CKN9500CT
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233788-SDA12H0SBR
Ultra Librarian 3D Model Ultra Librarian SDA12H0SBR CAD Model

Description

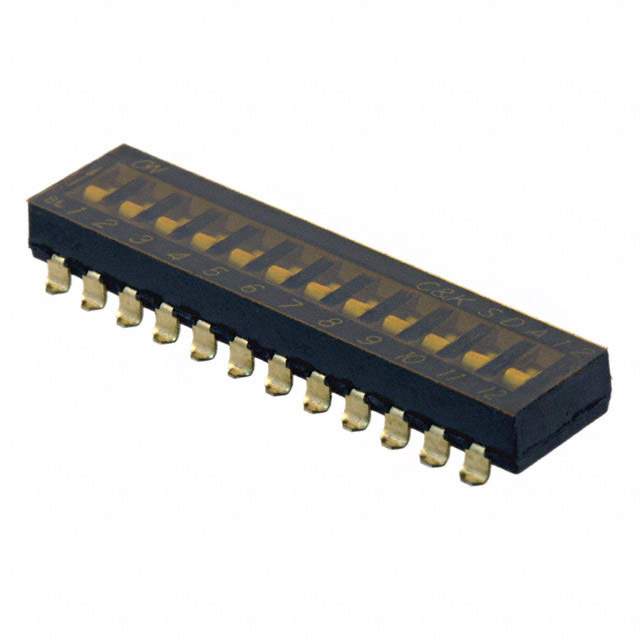

The SDA series DIP switch from C&K is a 12-position switch with a pitch of 0.100" (2.54mm), full.

  • Series: SDA
  • Positions: 12
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Contact Material: Beryllium Copper
  • Tape Seal: Yes
  • Contact Finish: Gold
  • Package: Tape & Reel
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Washable: Yes
  • Temperature Range: -40°C ~ 85°C
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Mounting: SMD (SMT)
  • Height Above Board: 0.175" (4.45mm)
  • Length: 1.279" (32.50mm)
  • ECCN: EAR99
  • REACH Affected: No
