Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 9
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.978" (24.84mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA09H
Other Names *SDA09H0SB,CKN6094
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233755-SDA09H0SB
Ultra Librarian 3D Model Ultra Librarian SDA09H0SB CAD Model

Description

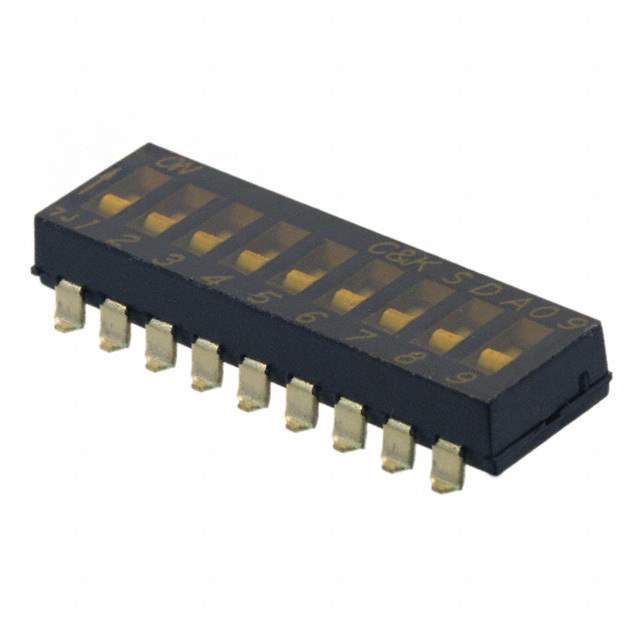

The C&K SDA09H0SB DIP switch is a reliable and durable switch that is perfect for electronic devices.

  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Height Above Board: 0.175" (4.45mm)
  • Length: 0.978" (24.84mm)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • MSL Level: 1 (unlimited)
  • Current Rating: 25mA
  • Washable: Yes
  • Temperature Range: -40°C ~ 85°C
  • REACH: Unaffected
  • ECCN: EAR99
