Same model may have multiple batches, images only for reference.

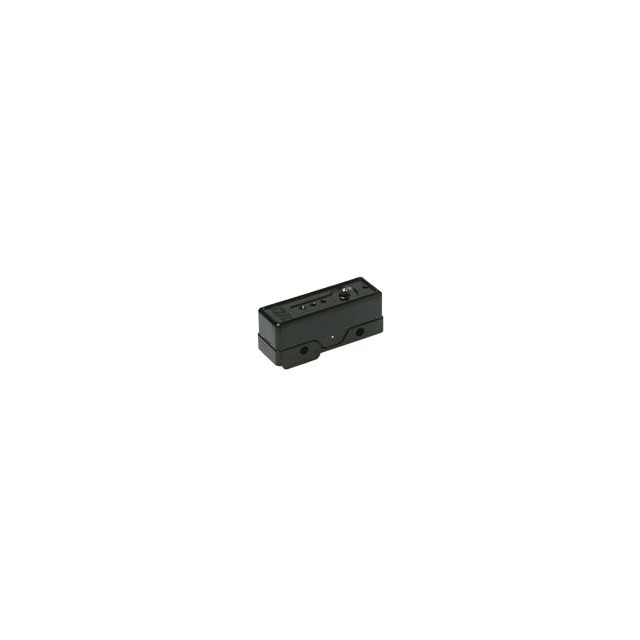

HBS2KCB4SF011C Real Image
Same model may have multiple batches, images only for reference.

HBS2KCB4SF011C

Part No HBS2KCB4SF011C
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 20A 125V / Switch Snap Action N.O./N.C. SPDT Reverse Action Roller Lever Solder/Screw 20A 480VAC 250VDC 2.79N Screw Mount Bulk
Datasheet
HBS2KCB4SF011C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Series HB
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 20A (AC), 500mA (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Actuator Type Lever, Roller
Mounting Chassis Mount
Termination Style Solder Lug
Ingress Protection IP65 - Dust Tight, Water Resistant
Operating Force, Torque 283gf
Release Force 85gf
Pretravel 0.080" (2.0mm)
Differential Travel 0.008" (0.2mm)
Overtravel 0.090" (2.3mm)
Operating Position 1.120" (28.45mm)
Electrical Life 150,000 Cycles
Operating Temperature Range -55°C ~ 150°C
Win Source Part Number 774297-HBS2KCB4SF011C
Popularity Medium
Supply and Demand Status Limited
Family Name HB
Introduction Date July 31, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HBS2KCB4SF011C CAD Model

Description

This C&K HB Series SPDT switch is a high-quality component designed for use in a range of electronic applications.

  • Voltage Rating: 125V AC and DC
  • Current Rating: 20A AC and 500mA DC
  • IP Rating: IP65
  • Actuator Type: lever or roller
  • Switch Function: On-Mom
  • Mechanical Life: 150,000 cycles
  • Operating Temperature: -55°C to 150°C
  • Mounting: chassis-mounted
