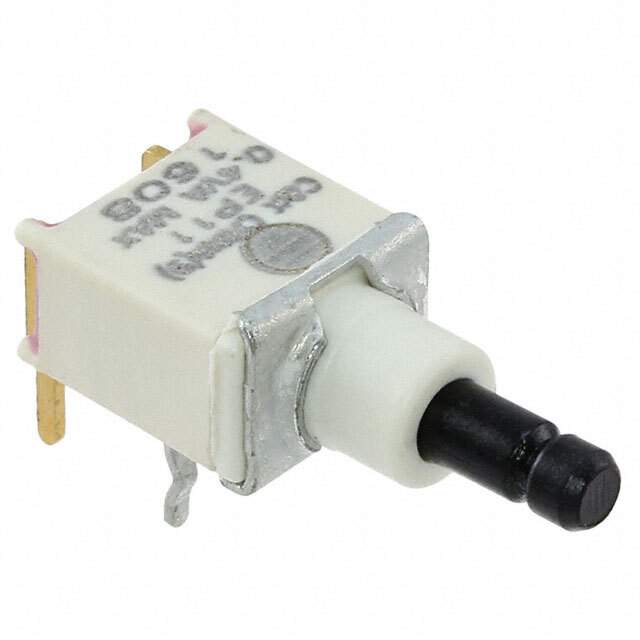

EP11RD1ABE Real Image
Same model may have multiple batches, images only for reference.

EP11RD1ABE

Part No EP11RD1ABE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V / Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
Datasheet
EP11RD1ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series EP
Package Tray
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 60,000 Cycles
Base Product Number EP11RD
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1340500-EP11RD1ABE
Ultra Librarian 3D Model Ultra Librarian EP11RD1ABE CAD Model

Description

The C&K EP11RD1ABE is a SPST-NO pushbutton switch.

  • Actuator Type: Plunger for Cap
  • Actuator Length: 12.45mm
  • Contact Rating @ Voltage: 0.4VA (AC/DC) @ 20V
  • Panel Cutout Dimensions: Circular - 6.35mm Dia
  • Mounting Type: Through Hole
  • Ingress Protection: IP57
  • Operating Temperature: -30°C to 85°C
  • Sealing: Epoxy Sealed
