CRE10ROTL0C C&K Components
Same model may have multiple batches, images only for reference.

CRE10ROTL0C

Part No CRE10ROTL0C
Manufacturer C&K Components
Catalog DIP Switches
Description SW CRE10 10MM ROT OT TH
Datasheet
CRE10ROTL0C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr C&K
Series CRE
Package Tube
Product Status Active
Circuit BCD
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 42VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Brass
Contact Finish Gold
Height Above Board 0.618" (15.70mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -20°C ~ 85°C
Body Material Liquid Crystal Polymer (LCP)
Length 0.394" (10.00mm)
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number CRE10ROT
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376093-CRE10ROTL0C
Ultra Librarian 3D Model Ultra Librarian CRE10ROTL0C CAD Model

Description

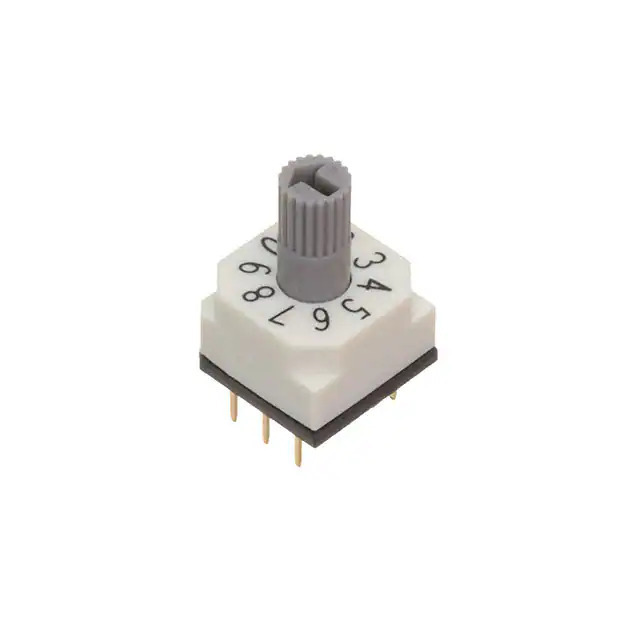

The CRE10ROT is a rotary DIP switch from C&K's CRE series.

  • Series: CRE
  • Mounting Type: Through Hole
  • Current Rating: 150mA
  • Positions: 10
  • Contact Material: Brass
  • Voltage Rating: 42VDC
  • Actuator Type: Rotary with Shaft
  • Termination Style: PC Pin
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Body Material: Liquid Crystal Polymer (LCP)
  • Height Above Board: 0.618" (15.70mm)
  • Washable: Yes
  • Length: 0.394" (10.00mm)
  • Product Status: Active
  • Application: BCD circuits
