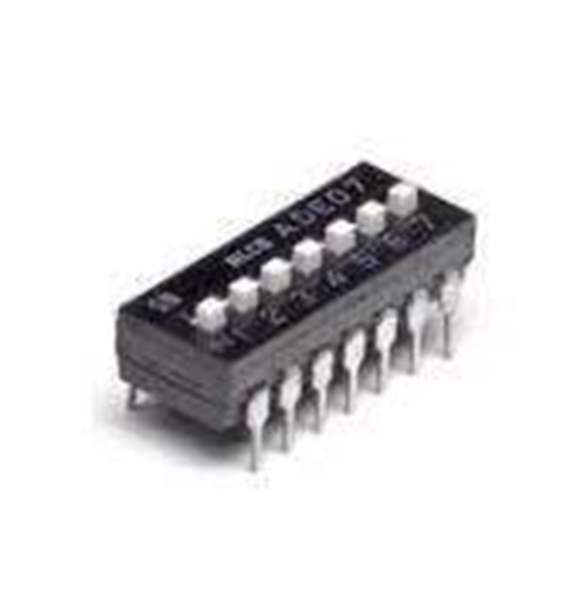

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity
Category DIP Switches
Illuminated Non-Illuminated
Number of Positions 8 Position
Switch Type DIP
Actuator Extended
Terminal Pitch 2.54 mm
Contact Form SPST
Termination Style SMD/SMT
Current Rating 100 mA
Voltage Rating DC 24 VDC
Actuator Style Extended
Ultra Librarian 3D Model Ultra Librarian ADE08S04 CAD Model

Description

DIP Switches / SIP Switches SWITCH DIP SPST EXT ACT 8POS SMD
