Same model may have multiple batches, images only for reference.

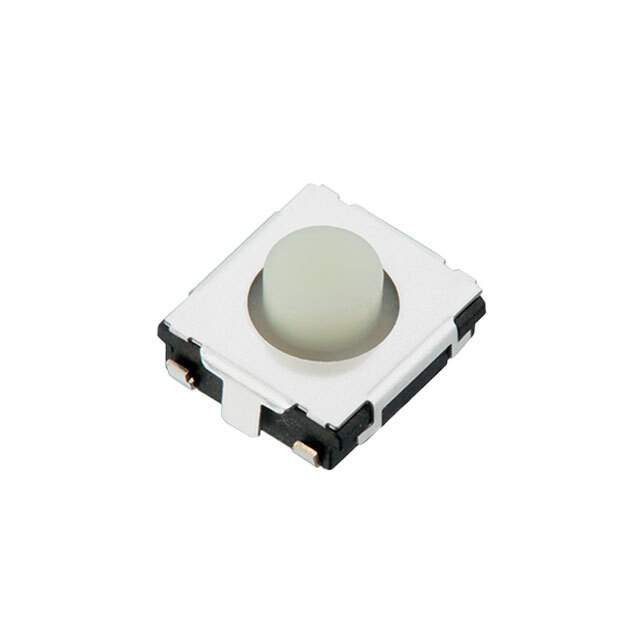

EVQ-7Q203W Real Image
Same model may have multiple batches, images only for reference.

EVQ-7Q203W

Part No EVQ-7Q203W
Manufacturer Panasonic
Catalog Tactile Switches
Description 6MM SQUARE THIN TYPE SMD LTSW / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic Electronic Components
Series EVQ7Q2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 80gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.20mm
Mechanical Life 2,000,000 Cycles
Base Product Number EVQ-7Q
Standard Package 2,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1340418-EVQ-7Q203W
Ultra Librarian 3D Model Ultra Librarian EVQ-7Q203W CAD Model

Description

The 1340418-EVQ-7Q203W is a tactile switch from the EVQ7Q series manufactured by Panasonic Electronic Components.

  • Switch Function: Off-Mom
  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Actuator Orientation: Top Actuated
  • Actuator Height off PCB, Vertical: 3.10mm
  • Operating Force: 80gf
  • Mechanical Life: 2,000,000 cycles
  • Package: Tape & Reel
  • Standard Package: 2,000
  • Outline: 6.50mm x 6.00mm
  • Illumination: Non-Illuminated
  • Switch Travel: 0.20mm
  • Contact Rating @ Voltage: 0.02A @ 15VDC
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Ingress Protection: No
  • Illumination Type, Color: No
  • MSL Level: Not Applicable
  • HTSUS: 8536.50.9031
