Same model may have multiple batches, images only for reference.

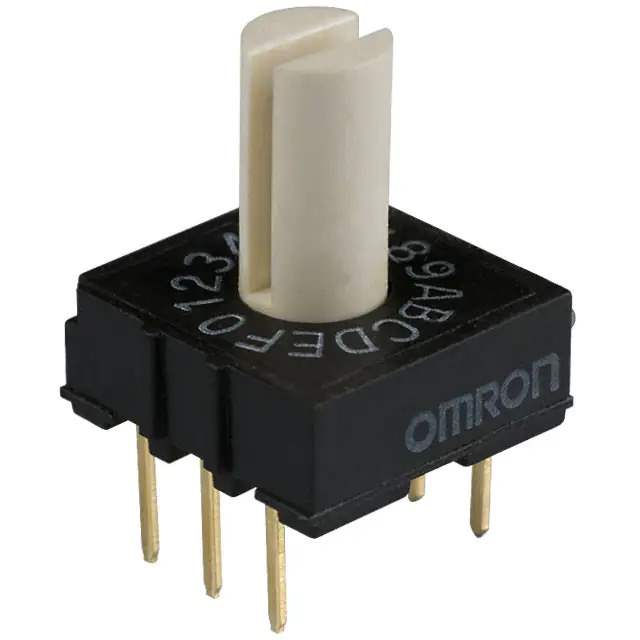

A6R-162RS Real Image
Same model may have multiple batches, images only for reference.

A6R-162RS

Part No A6R-162RS
Manufacturer Omron
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 25MA 24V
Datasheet
A6R-162RS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron
Series A6R
Package Tube
Product Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Height Above Board 0.465" (11.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed
Temperature Range - Operating -25°C ~ 80°C
Length 0.386" (9.80mm)
Electrical Life 5,000 Steps
Base Product Number A6R
Standard Package 48 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 845885-A6R-162RS
Ultra Librarian 3D Model Ultra Librarian A6R-162RS CAD Model

Description

The A6R-162RS DIP switch is a 16-position hexadecimal switch designed for various applications. It features a PC pin termination style and is sealed for protection.

  • Positions: 16
  • Termination Style: PC Pin
  • Sealed: Yes
  • Voltage Rating: 24VDC
  • Height Above Board: 0.465 inches (11.80mm)
  • Length: 0.386 inches (9.80mm)
  • Circuit: Hexadecimal
  • Actuator Type: Rotary with Shaft
  • Electrical Life: 5,000 steps
  • Mounting: Through Hole
  • Temperature Range: -25°C to 80°C
  • Manufacturer: Omron
  • Status: Active
  • Packaging: Tube of 48 pcs
