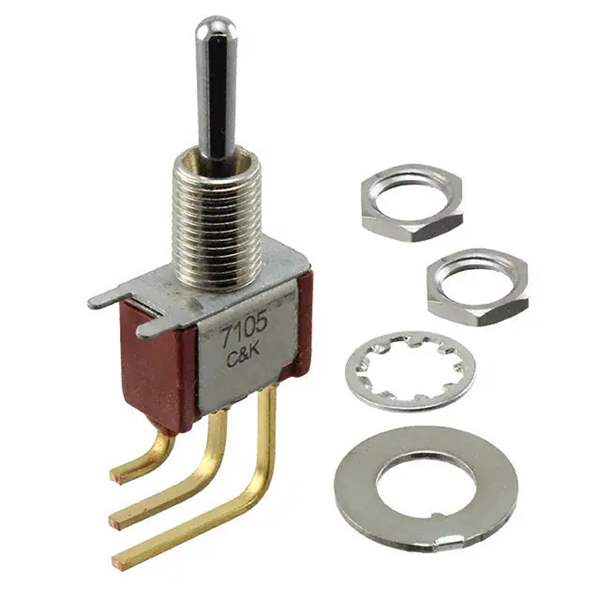

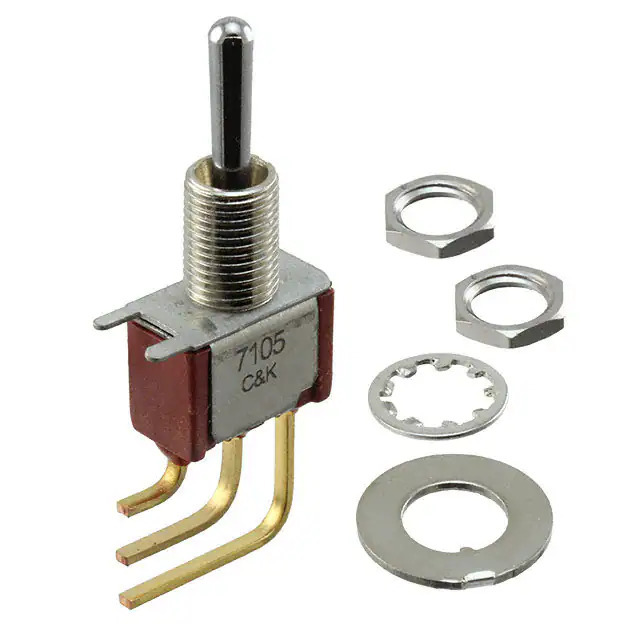

7105SYAV2BE C&K Components
Same model may have multiple batches, images only for reference.

7105SYAV2BE

Part No 7105SYAV2BE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
Datasheet
7105SYAV2BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount, Right Angle, Vertical
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 10.67mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7105SY
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375986-7105SYAV2BE
Ultra Librarian 3D Model Ultra Librarian 7105SYAV2BE CAD Model

Description

The 7105SYAV2BE is a toggle switch from C&K's 7000 series.

  • Mounting Type: Panel Mount, Right Angle, Vertical
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V AC, 20V DC
  • Circuit: Single Pole, Double Throw
  • Switch Function: Momentary-Off-Momentary
  • Actuator Type: Standard Round
  • Termination Style: PC Pin
  • Panel Cutout: 6.35mm Diameter (Circular)
  • Electrical Life: 40,000 Cycles
  • Operating Temperature: -30°C to 85°C
