Same model may have multiple batches, images only for reference.

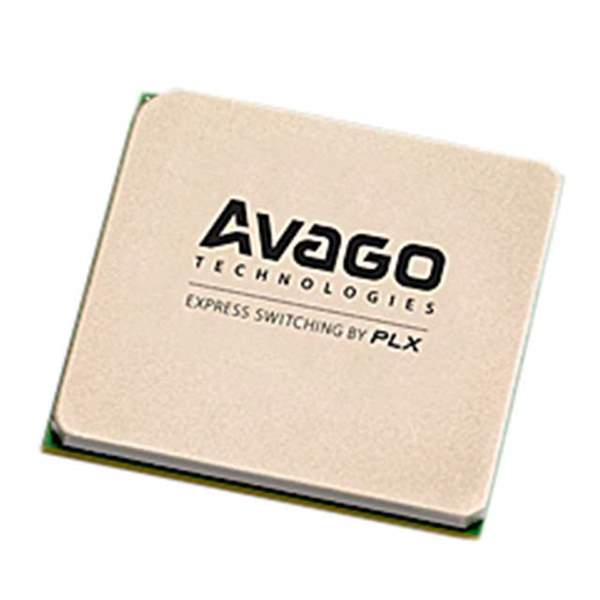

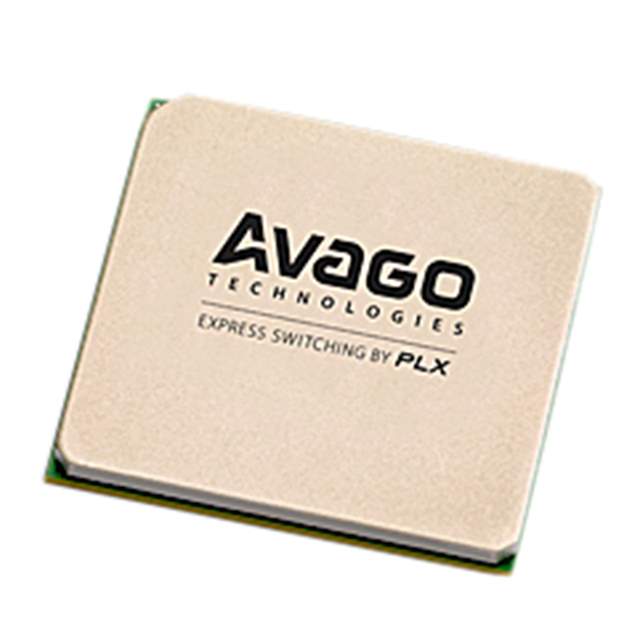

PEX8747-CA80BC G Real Image
Same model may have multiple batches, images only for reference.

PEX8747-CA80BC G

Part No PEX8747-CA80BC G
Manufacturer Broadcom Limited
Catalog Interface - Analog Switches - Special Purpose
Description IC PCI EXPRESS SWITCH 676FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 49 Weeks
Features PCI Express® Switch IC Channel 676-FCBGA (27x27)
Manufacturer Broadcom Limited
Series ExpressLane™
Package Tray
Mounting Surface Mount
Case / Package 676-FCBGA (27x27)
Family Name PEX8747
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A991C1
HTSUS 8542.39.0001
Quantity per package 120
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930291-PEX8747-CA80BC G
Ultra Librarian 3D Model Ultra Librarian PEX8747-CA80BC G CAD Model

Description

The Broadcom Limited 930291-PEX8747-CA80BC G is an electronic component that is part of the ExpressLane series.

  • Component Type: PCI Express switch IC channel
  • Package: 676-FCBGA (27x27)
  • Supply and Demand Status: Balanced
  • Package Type: Tray
  • Pieces per Package: 120 pieces
  • ECCN: 5A991C1
  • Manufacturer: Broadcom Limited
  • Win Source Part Number: 930291-PEX8747-CA80BC G
