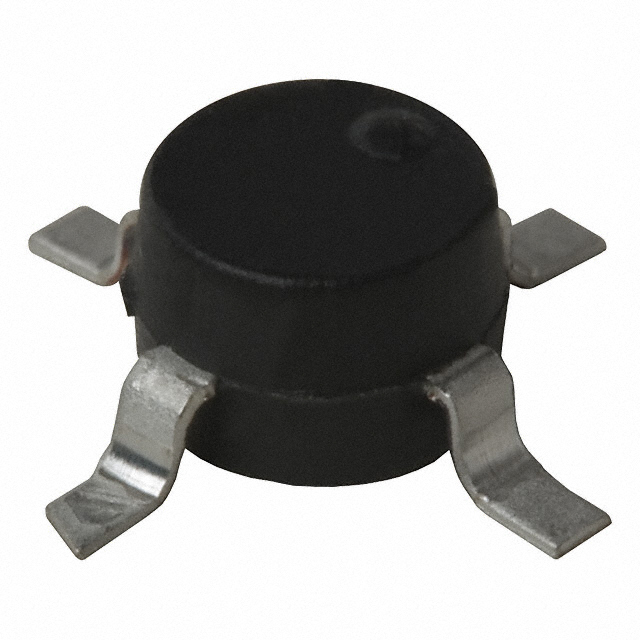

MSA-1105-TR1G Broadcom Limited MSA-1105-TR1G Real Image
Same model may have multiple batches, images only for reference.

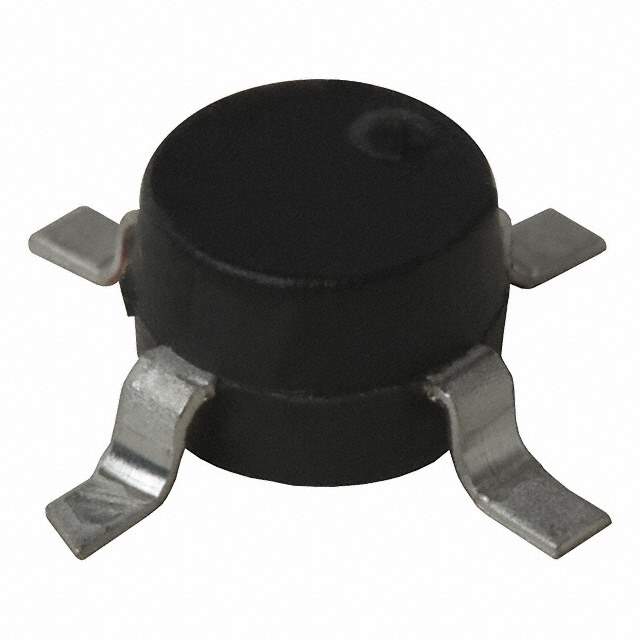

MSA-1105-TR1G Broadcom Limited MSA-1105-TR1G Real Image
MSA-1105-TR1G Broadcom Limited MSA-1105-TR1G Real Image
Same model may have multiple batches, images only for reference.

MSA-1105-TR1G

Part No MSA-1105-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 80MA 05-SMD
Datasheet
MSA-1105-TR1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 50MHz to 1.3GHz
P1dB 17.5dBm (56.2mW)
Gain 10dB to 12dB
Noise Figure 3.6dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 4.4 V to 6.6 V
Operating Supply Current 80mA
Test Frequency 500MHz
Case / Package 05 Plastic Package
Win Source Part Number 130839-MSA-1105-TR1G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MSA-1105-TR1G CAD Model

Description

The supply and demand status is currently limited as it is obsolete (EOL).

  • Win Source Part Number: 130839-MSA-1105-TR1G
  • Manufacturer: Broadcom Limited
  • Packaging Type: Reel - TR
  • Test Frequency: 500MHz
  • Frequency Range: 50MHz to 1.3GHz
  • Gain Range: 10dB to 12dB
  • Noise Figure: 3.6dB
