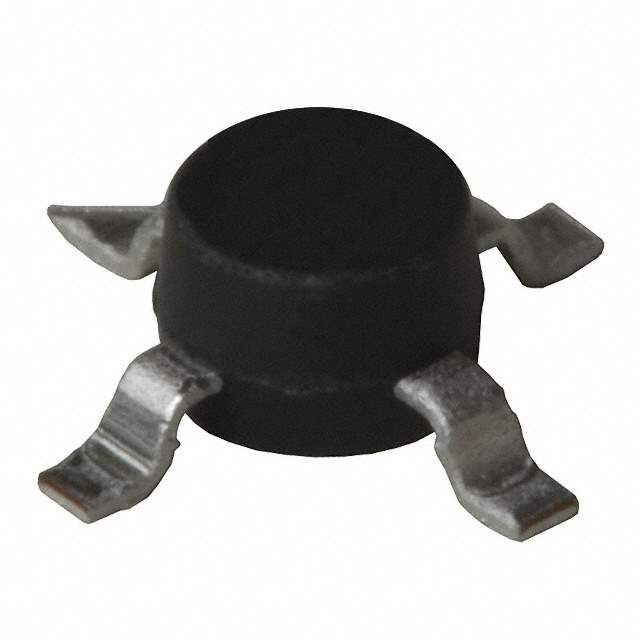

MSA-0686-TR1 Real Image
Same model may have multiple batches, images only for reference.

MSA-0686-TR1

Part No MSA-0686-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 50MA 86-SMD
Datasheet
MSA-0686-TR1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 800MHz
P1dB 2dBm (1.6mW)
Gain 18.5dB
Noise Figure 3dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 2.8 V to 4.2 V
Operating Supply Current 50mA
Test Frequency 500MHz
Case / Package 86 Plastic Package
Win Source Part Number 100620-MSA-0686-TR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MSA-0686-TR1 CAD Model

Description

The Broadcom Limited 100620-MSA-0686-TR1 RF Amplifier is a high-performance device designed to operate in the frequency range of 0Hz to 800MHz.

  • Frequency Range: 0Hz to 800MHz
  • Gain: 18.5dB
  • Noise Figure: 3dB
  • Application: ISM, PCS, WLL, and 802.16/WiMax applications
  • Package: 86 plastic
  • Supply Voltage: 2.8V to 4.2V
  • Current Draw: 50mA
  • P1dB: 2dBm (1.6mW)
  • Packaging: reel
  • Status: obsolete (EOL)
  • Supply: limited
