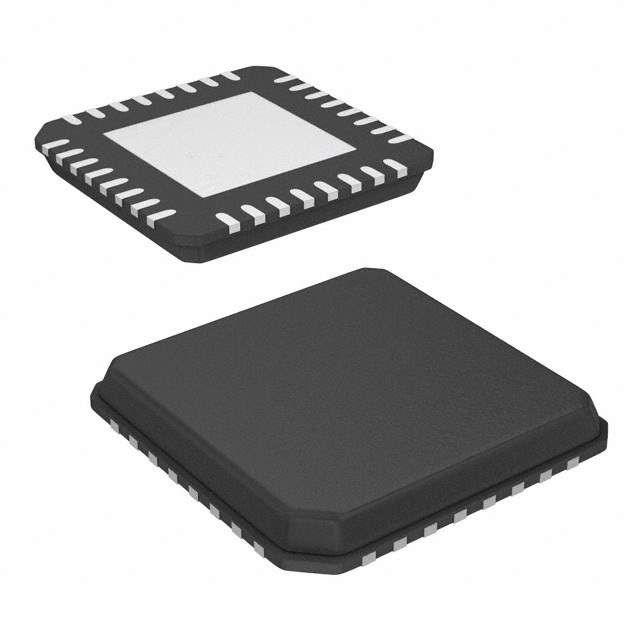

The CC1021RSSR is a high-performance, low-power RF transceiver designed by Texas Instruments for use in the 402–470 MHz and 804–940 MHz frequency bands, making it an ideal choice for a wide range of applications including industrial, scientific, and medical (ISM) band systems, wireless alarm and security systems, automated meter reading, and home automation.

Key Features

• Frequency Bands: The transceiver operates in the 402–470 MHz and 804–940 MHz bands, providing flexibility for use in various global RF standards.
• Modulation: It supports various modulation formats including 2-FSK, GFSK, and OOK, allowing for a customizable approach to balance data rate and link reliability.
• High Sensitivity: With a sensitivity of up to -110 dBm, the CC1021RSSR ensures reliable communication even in environments with low signal strength.
• Low Power Consumption: The device is engineered for power efficiency, which is essential for battery-powered applications, with a typical current consumption of 9.9 mA in RX and 12.1 mA in TX at 0 dBm.
• Programmable Output Power: Output power can be programmed up to +10 dBm, providing a good balance between range and power usage.
• Integrated Analog Features: Includes an integrated analog temperature sensor and battery voltage sensor, which can be used for monitoring and diagnostic purposes.

Applications

The versatility of the CC1021RSSR makes it suitable for a variety of applications, including but not limited to:

• Wireless Sensor Networks
• Industrial Monitoring and Control
• Home and Building Automation
• Wireless Alarm Systems
• Remote Keyless Entry
• Automated Meter Reading (AMR)

Conclusion

The Texas Instruments CC1021RSSR RF transceiver is a robust and versatile component that offers a blend of performance, power efficiency, and reliability. Its extensive feature set and frequency band support make it an excellent choice for designers looking to create sophisticated wireless solutions in a variety of markets and applications.
