Same model may have multiple batches, images only for reference.

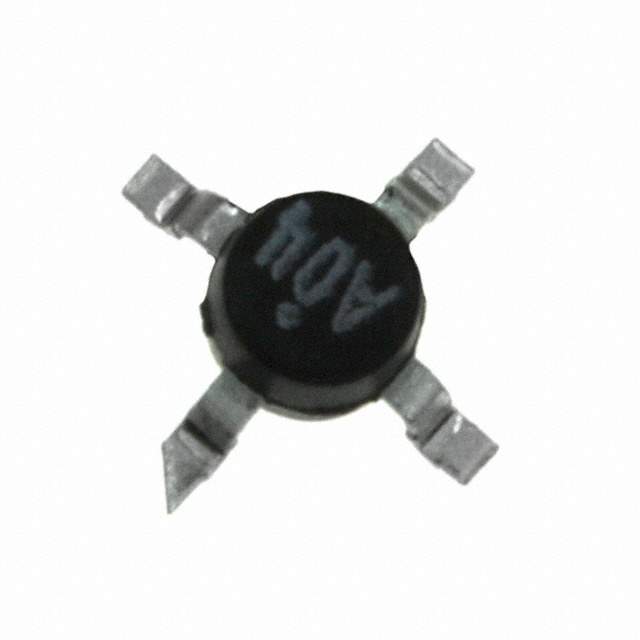

MSA-0486-BLKG Real Image
Same model may have multiple batches, images only for reference.

MSA-0486-BLKG

Part No MSA-0486-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description AMP MMIC SI BIPOLAR 86SMD PLAST
Datasheet
MSA-0486-BLKG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete(EOL)
Frequency 0Hz to 5GHz
P1dB 12.5dBm (17.8mW)
Gain 7dB to 8dB
Noise Figure 7dB
Supply Voltage - Operating 4.2 V to 6.3 V
Operating Supply Current 85mA
Test Frequency 1GHz
Case / Package 86 Plastic Package
Win Source Part Number 104251-MSA-0486-BLKG
Ultra Librarian 3D Model Ultra Librarian MSA-0486-BLKG CAD Model

Description

The Broadcom Limited 104251-MSA-0486-BLKG is an obsolete RF amplifier with a frequency range of 0Hz to 5GHz and a gain of 7dB to 8dB. This amplifier has a noise figure of 7dB and a P1dB of 12.5dBm. This amplifier is packaged in an 86 Plastic Package and operates on a supply voltage of 4.2V to 6.3V with an operating supply current of 85mA. While this amplifier is no longer in production and has been replaced by newer models, it may still be suitable for some applications.

  • Status: obsolete
  • Frequency Range: 0Hz to 5GHz
  • Gain: 7dB to 8dB
  • Noise Figure: 7dB
  • P1dB: 12.5dBm
  • Package: 86 Plastic Package
  • Supply Voltage: 4.2V to 6.3V
  • Operating Supply Current: 85mA
