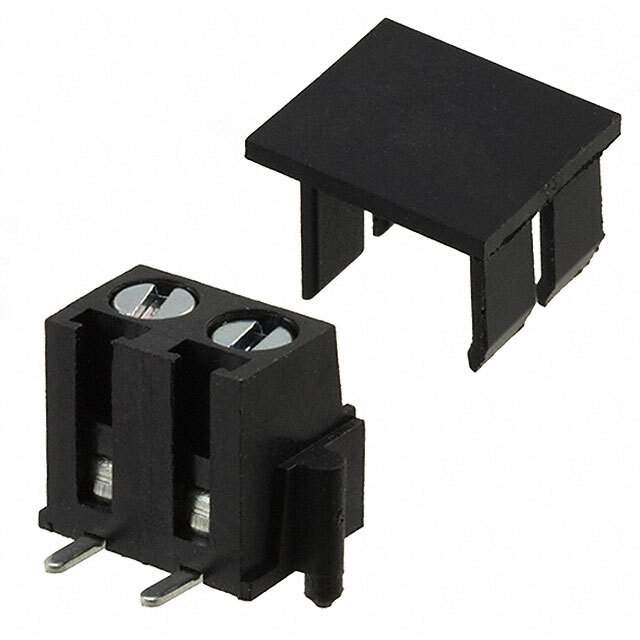

691709710302 Real Image1 691709710302 Real Image2
Same model may have multiple batches, images only for reference.
691709710302 Real Image1 691709710302 Real Image2
691709710302 Real Image1 691709710302 Real Image2
Same model may have multiple batches, images only for reference.

691709710302

Part No 691709710302
Manufacturer Wurth Electronics Inc
Catalog Terminal Blocks
Description TERM BLK 2POS SIDE ENTRY 5MM SMD / 2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Surface Mount
Datasheet
691709710302 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Wurth Electronics Inc
Series WR-TBL Series 7097
Package Tape & Reel
Number of Levels 1
Positions Per Level 2
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 6 A
Voltage 300 V
Wire Gauge 14-30 AWG
Mounting Type Surface Mount
Wire Termination Screw - Leaf Spring, Wire Guard
Features Board Guide
Color Black
Temperature Range - Operating -40°C ~ 115°C
Housing Material Polyamide (PA46), Nylon 4/6
Contact Material - Plating Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 200 pcs
Win Source Part Number 1381022-691709710302
Ultra Librarian 3D Model Ultra Librarian 691709710302 CAD Model

Description

The 1381022-691709710302 is a wire-to-board terminal block connector from the WR-TBL Series 7097.

  • Series: WR-TBL Series 7097
  • Positions per Level: 2
  • Pitch: 0.197" (5.00mm)
  • Mounting Type: Surface Mount
  • Mating Orientation: Horizontal
  • Wire Gauge: 14 to 30 AWG
  • Housing Material: Polyamide (PA46), Nylon 4/6
  • Contact Material: Tin Plated Brass
  • Voltage Rating: 300V
  • Current Rating: 6A
  • Operating Temperature: -40°C to 115°C
  • Standard Package: 200 pcs
