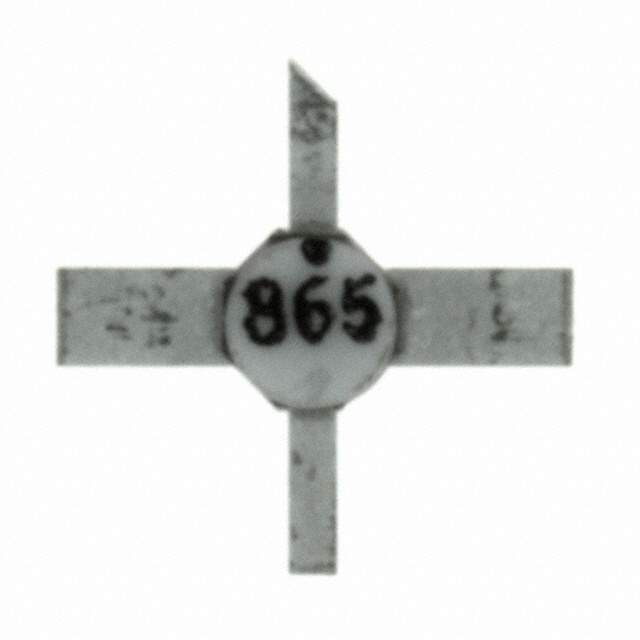

MGA-86576-STRG Real Image
Same model may have multiple batches, images only for reference.

MGA-86576-STRG

Part No MGA-86576-STRG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description Front End Amplifier for GPS Receivers | IC RF AMP ISM 1.5GHZ-8GHZ 76 PKG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete
Frequency 1.5GHz ~ 8GHz
P1dB 6dBm
Gain 20dB
Noise Figure 1.6dB
RF Type ISM
Supply Voltage (V) 5V
Supply Current 22mA
Test Frequency 4GHz
Manufacturer Package Case 76
Supplier Device Package 76 Package Ceramic
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1221885-MGA-86576-STRG
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MGA-86576-STRG CAD Model

Description

The Broadcom Limited MGA-86576-STRG is an obsolete part that is designed for RF/IF and RFID applications.

  • Frequency Range: 1.5GHz to 8GHz
  • Test Frequency: 4GHz
  • Gain: 20dB
  • Supply Current: 22mA
  • Noise Figure: 1.6dB
  • P1dB: 6dBm
  • RF Type: ISM
  • Supplier Device Package: 76 Package Ceramic
  • Manufacturer Homepage: www.avagotech.com
