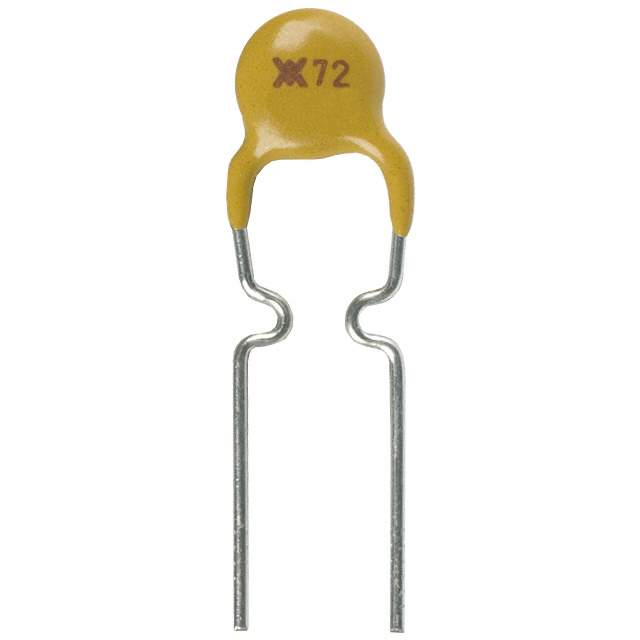

RF2628-000 Real Image
Same model may have multiple batches, images only for reference.

RF2628-000

Part No RF2628-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.25A(hold) 0.5A(trip) 72VDC 40A 0.45W 2.5s 1.25Ohm Radial 7.4 X 3mm T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Height - Seated (Max) 12.7 mm
Hold Current 250 mA
Lead Pitch 5.0546 mm
Max Current Rating 40 A
Mount Through Hole
RoHS Compliant
Time to Trip 2.5 s
Trip Current 500 mA
Width 2.9972 mm
Win Source Part Number 1118288-RF2628-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2628-000 CAD Model

Description

The RF2628-000 PTC resettable fuse is manufactured by Littelfuse Inc. and is designed to be used in through-hole mounting.

  • Manufacturer: Littelfuse Inc.
  • Fuse Type: PTC Resettable
  • Mounting Type: Through Hole
  • Hold Current: 250mA
  • Trip Current: 500mA
  • Time to Trip: 2.5s
  • Maximum Current Rating: 40A
  • Lead Pitch: 5.0546mm
  • Width: 2.9972mm
  • Height: 12.7mm
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Supply Status: Limited
