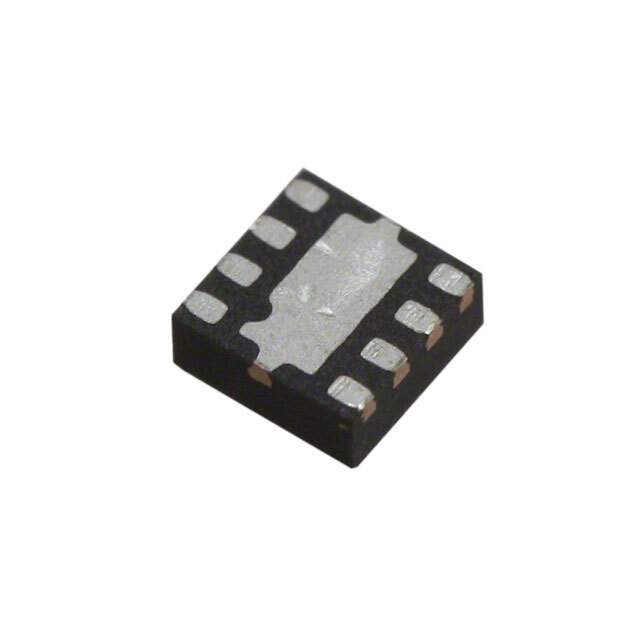

MGA-665P8-TR1 Real Image
Same model may have multiple batches, images only for reference.

MGA-665P8-TR1

Part No MGA-665P8-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description RF Amp Single LNA 6GHz 8-Pin LPCC T/R / IC AMP MMIC LNA GAAS 3V 8-LPCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Frequency 500MHz to 6GHz
P1dB 11.4dBm (13.8mW)
Gain 14.5dB to 17.4dB
Noise Figure 1.45dB to 1.9dB
RF Type 802.11/WiFi, WLAN
Supply Voltage - Operating 3V
Operating Supply Current 18.2mA to 23.8mA
Test Frequency 2.4GHz
Case / Package 8-LPCC (2x2)
Win Source Part Number 058485-MGA-665P8-TR1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name MGA-665P8
Introduction Date April 01, 2004
ECCN 5A991.g
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MGA-665P8-TR1 CAD Model

Description

The Broadcom Limited MGA-665P8-TR1 is an active RF/IF and RFID component with a high popularity in the market.

  • Frequency Range: 500MHz to 6GHz
  • Test Frequency: 2.4GHz
  • Gain: 14.5dB to 17.4dB
  • Noise Figure: 1.45dB to 1.9dB
  • P1dB: 11.4dBm (13.8mW)
  • Suitable for: 802.11/WiFi and WLAN
  • Package: 8-LPCC (2x2)
  • Compliance: Halogen-free
  • Operating Supply Voltage: 3V
  • Operating Supply Current: 18.2mA to 23.8mA
