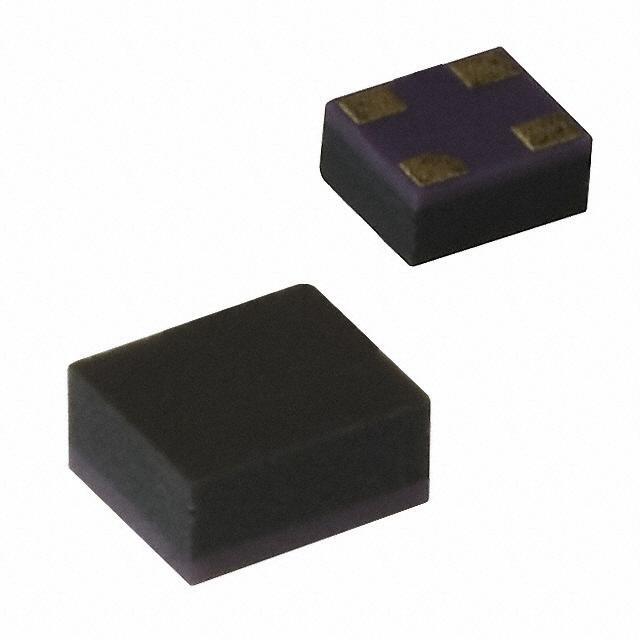

HMPS-2820-TR1

Part No HMPS-2820-TR1
Manufacturer Broadcom Limited
Catalog RF Diodes
Description RF Diode Schottky 15V 4-Pin Mini-PAK T/R / DIODE SCHOTTKY RF 15V 1A MINPAK
Datasheet
HMPS-2820-TR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 15V
Current - Max 1A
Capacitance @ Vr, F 1pF @ 0V, 1MHz
Resistance @ If, F 12 Ohm @ 5mA, 1MHz
Temperature Range - Operating 150°C (TJ)
Case / Package MiniPak 1412
Win Source Part Number 068178-HMPS-2820-TR1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name HMPS-2820
Introduction Date April 01, 2004
ECCN EAR99
Country of Origin Taiwan, Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HMPS-2820-TR1 CAD Model

Description

The Broadcom Limited electronic component with win source part number 068178-HMPS-2820-TR1 is a high-quality Schottky - Single Diode product that is popular in the market. The product can operate at a temperature of 150°C (TJ) and has a voltage peak reverse (Max) of 15V. The package is MiniPak 1412, and the product is compliant with halogen-free regulations.
