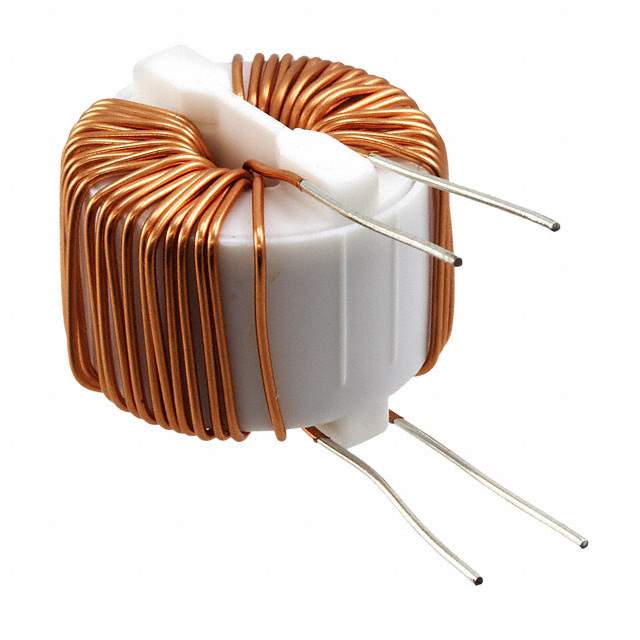

SC-02-200 Real Image
Same model may have multiple batches, images only for reference.

SC-02-200

Part No SC-02-200
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.906" Dia x 0.728" W (23.00mm x 18.50mm)
Height (Max) 0.906" (23.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-02
Other Names 399-10606,UALSC022000000
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277063-SC-02-200
Ultra Librarian 3D Model Ultra Librarian SC-02-200 CAD Model

Description

The KEMET SC-02-200 is a power line common mode choke with a 2A current rating and a through-hole mounting type.

  • Current Rating: 2A
  • Mounting Type: Through-hole
  • Diameter: 0.906 inches
  • Height: 0.728 inches
  • Temperature Range: -25°C to 105°C
