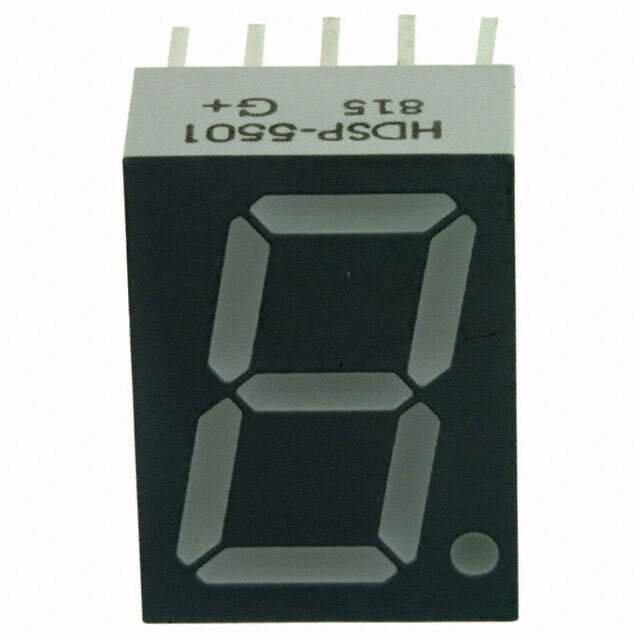

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 2.1V
Current - Test 20mA
Millicandela Rating 2.8mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.600", 15.24mm)
Win Source Part Number 126722-HDSP-5501
Popularity Medium
Supply and Demand Status Limited
Quantity per package 320
Ultra Librarian 3D Model Ultra Librarian HDSP-5501 CAD Model

Description

The Broadcom Limited 126722-HDSP-5501 is a 7-segment display type optoelectronic product. It comes in a 10-DIP (0.600", 15.24mm) dimension and has a common anode pin. The product is red in color and has a forward voltage of 2.1V. It has a millicandela rating of 2.8mcd and operates at a current test of 20mA. The wavelength peak of the product is 635nm and it has a power dissipation of 105mW. The product is widely used in the industry and has a medium popularity. It has a limited supply and demand status and comes in a package of 320.
