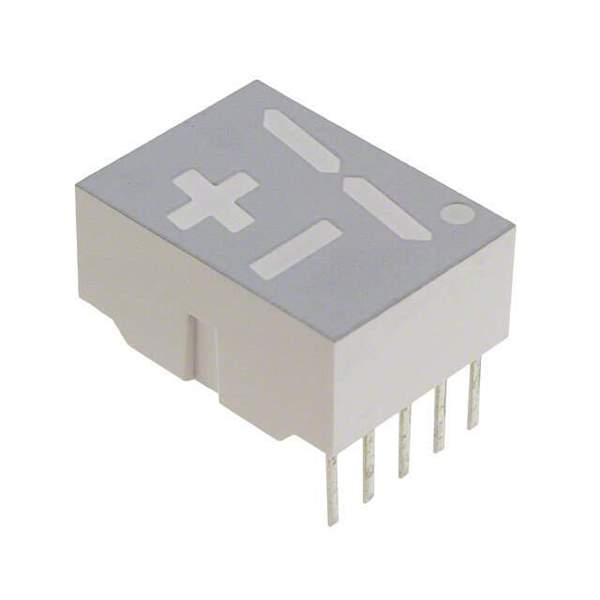

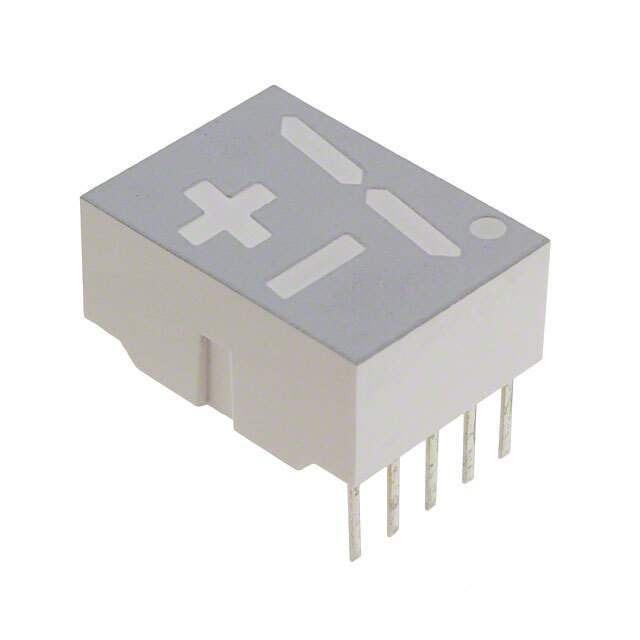

HDSP-H108 Broadcom Limited
Same model may have multiple batches, images only for reference.

HDSP-H108

Part No HDSP-H108
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISP 7SEG 0.56" OV/FL RED 10DIP
Datasheet
HDSP-H108 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310039-HDSP-H108
Category Optoelectronics >LED Character and Numeric
Manufacturer Broadcom Limited
Packaging  Bulk
Part Status Obsolete
Number of Characters +/-1 (overflow)
Size / Dimension 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Ultra Librarian 3D Model Ultra Librarian HDSP-H108 CAD Model

Description

These low current seven segment displays are designed for applications requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available.
