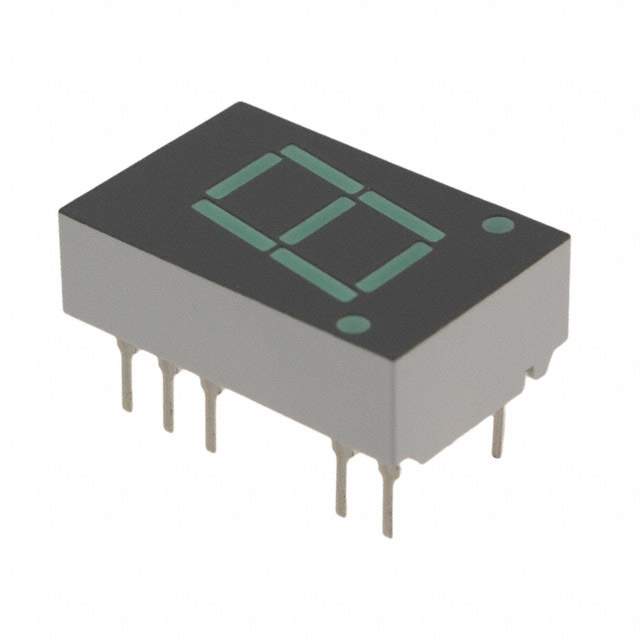

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 1
Parts Dimension 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Digit/Alpha Size 0.43" (11.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) 2.1V
Current - Test 10mA
Millicandela Rating 4mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 14-DIP , 10 Leads
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179734-HDSP-4603
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HDSP-4603 CAD Model

Description

The HDSP-4603 from Broadcom Limited is a 7-segment display unit.

  • Manufacturer Package: 14-DIP, 10 leads
  • Color: green
  • Pin Type: common cathode
  • Digit/Alpha Size: 0.43 inches (11.00mm)
  • Millicandela Rating: 4mcd
  • Peak Wavelength: 566nm
  • Maximum Power Dissipation: 105mW
  • Popularity: popular
  • Supply and Demand Status: balanced
  • Height: 0.750 inches (19.05mm)
  • Width: 0.500 inches (12.70mm)
  • Depth: 0.250 inches (6.35mm)
  • Forward Voltage: 2.1V
  • The HDSP-4603 is suitable for optoelectronics applications.
