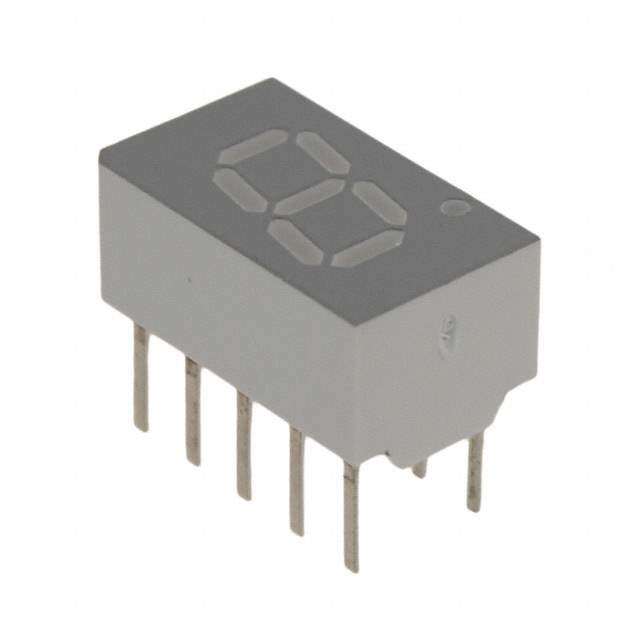

The HDSP-7511 is a seven-segment LED display module manufactured by Broadcom Limited. It is designed for displaying numerical and alphanumeric characters in a variety of electronic devices. This display module offers a clear and bright visual output, making it suitable for applications requiring easily readable information.

Applications

• Digital Clocks
• Instrumentation Panels
• Industrial Control Equipment
• Consumer Electronics
• Test and Measurement Devices
• Digital Readouts

Features

• Seven-Segment Display
• Common Anode Configuration
• High Luminous Intensity
• Excellent Character Appearance
• Wide Viewing Angle
• Categorized for Luminous Intensity
• Gray Face with White Segments

Benefits

• Provides a clear and easily readable display for numerical and alphanumeric characters.
• Offers high luminous intensity for visibility in various lighting conditions.
• Ensures excellent character appearance for enhanced readability.
• Facilitates easy integration into electronic circuits.
• Offers a wide viewing angle for convenient viewing from different perspectives.
• Long operating life, contributing to overall system reliability.
• Rugged and reliable construction for operation in harsh environments.

Technical Specifications

The HDSP-7511 is a 0.3-inch (7.62 mm) character height display. It is designed for multiplexed operation and features a common anode configuration. The display emits green light. Specific details about forward voltage, current, and luminous intensity can be found in the Broadcom datasheet.
