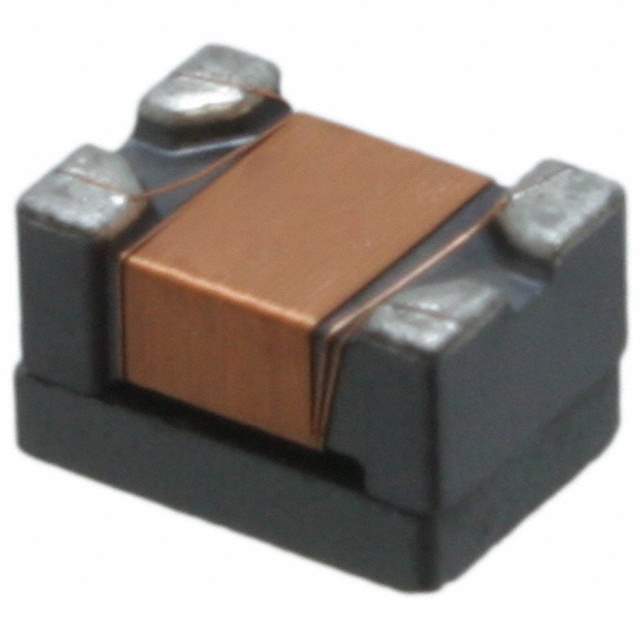

SRF4532-510Y Real Image
Same model may have multiple batches, images only for reference.

SRF4532-510Y

Part No SRF4532-510Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Common Mode Chip Inductors | CMC 51UH 200MA 2LN 2 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 2 kOhms at 10MHz
Inductance at Frequency 51μH at 100kHz
Current Rating (Maximum) 200mA
DC Resistance (DCR) (Maximum) 3.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Maximum) 0.118" (3.00mm)
Manufacturer Package Horizontal, 4 PC Pad
Family Part Number SRF4532
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1258762-SRF4532-510Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SRF4532-510Y CAD Model

Description

The SRF4532-510Y is a filter product manufactured by Bourns Inc.

  • This product is designed to provide signal line filtering for electronic devices.
  • It is a surface-mount device with a horizontal, 4 PC pad package.
  • The SRF4532-510Y has a maximum height of 0.118" (3.00mm), a maximum current rating of 200mA, and a maximum DC resistance (DCR) of 3.5Ohm.
  • It is a reliable and efficient product that is ideal for use in electronic devices.
