Same model may have multiple batches, images only for reference.

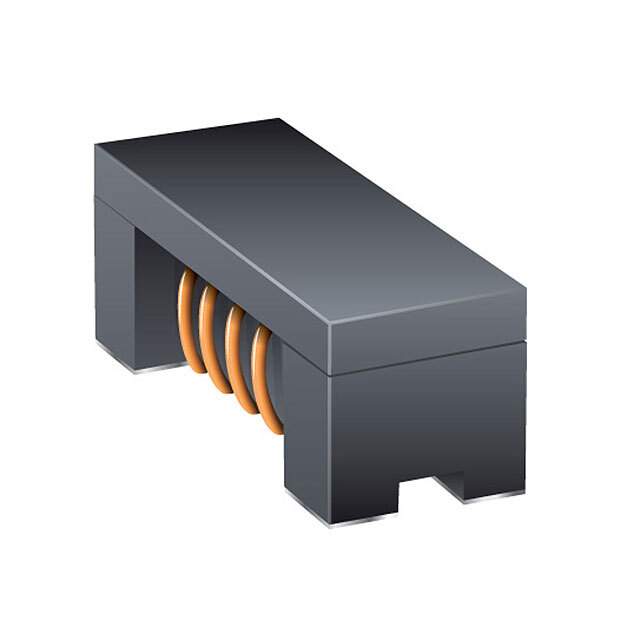

SRF3216A-361Y Real Image
Same model may have multiple batches, images only for reference.

SRF3216A-361Y

Part No SRF3216A-361Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF3216A-361Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF3216A
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 360 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 600mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.087" (2.20mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF3216A
Other Names SRF3216A-361YDKR,SRF3216A-361YCT,SRF3216A-361YTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277115-SRF3216A-361Y
Ultra Librarian 3D Model Ultra Librarian SRF3216A-361Y CAD Model

Description

The SRF3216A-361Y is a common mode choke filter designed by Bourns Inc. for use in signal line applications.

  • Voltage Rating: 50V DC
  • Current Rating: 300mA (max)
  • Package: Tape and Reel
  • Standard Package: 2,000
  • Height: 0.087 inches
  • Impedance: 360-ohm @ 100 MHz
  • DC Resistance (DCR): 600mOhm
  • Operating Temperature: -40°C to 125°C
  • Package/Case: 4 PC pad horizontal
  • Rating: AEC-Q200
  • Series: SRF3216A
  • Application: Automotive
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
