Same model may have multiple batches, images only for reference.

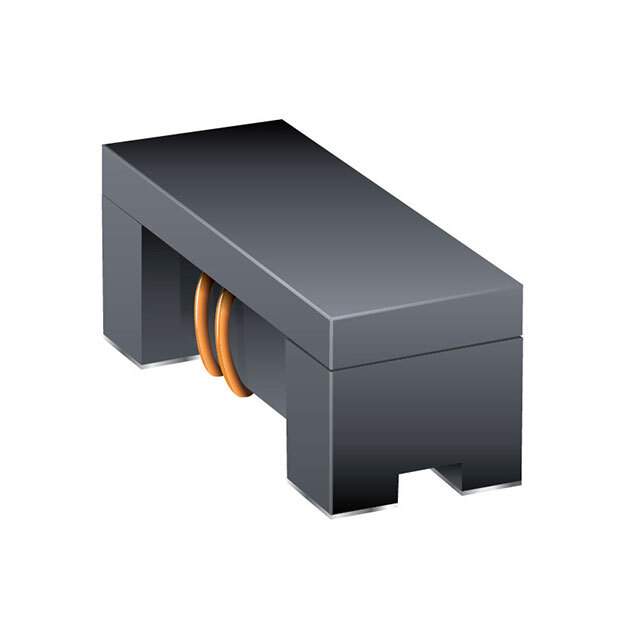

SRF2012A-801Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012A-801Y

Part No SRF2012A-801Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF2012A-801Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012A
Package Tape & Reel
Number of Lines 2
Impedance @ Frequency 800 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 880mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012A
Other Names SRF2012A-801YCT,SRF2012A-801YTR,SRF2012A-801YDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277136-SRF2012A-801Y
Ultra Librarian 3D Model Ultra Librarian SRF2012A-801Y CAD Model

Description

The SRF2012A-801Y is a common mode choke manufactured by Bourns Inc.

  • Designed To: Suppress common mode noise in electronic circuits
  • Voltage Rating: AC and DC
  • Current Rating: 300mA
  • Packaging: Tape and reel packaging
  • Maximum Operating Temperature Range: -55°C to 125°C
  • Impedance: 800 ohms @ 100 MHz
  • DC Resistance: 880mOhm
  • RoHS Status: Please verify before use
