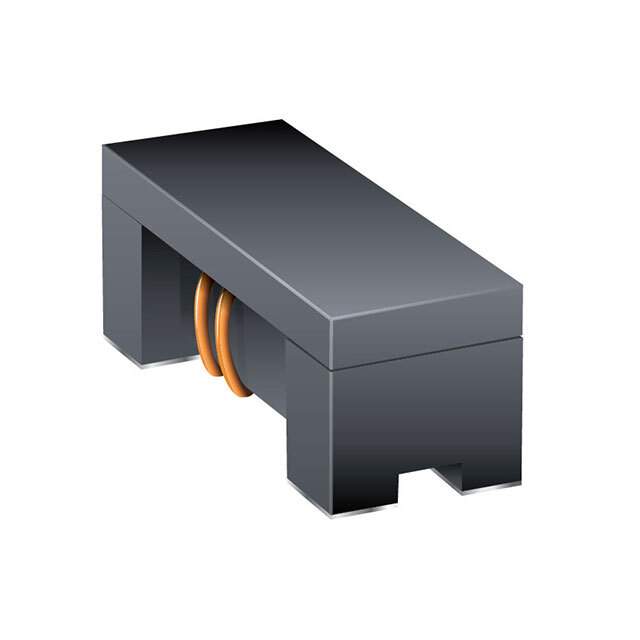

SRF2012-371Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012-371Y

Part No SRF2012-371Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Number of Lines 2
Impedance @ Frequency 370 Ohms @ 100 MHz
Current Rating (Max) 280mA
DC Resistance (DCR) (Max) 450mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.057" (1.45mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012
Other Names SRF2012-371YCT,-SRF2012-371Y,-SRF2012-371YCT,SRF2012-371YTR,-SRF2012-371YTR,SRF2012-371Y,SRF2012371Y,-SRF2012-371Y
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277145-SRF2012-371Y
Ultra Librarian 3D Model Ultra Librarian SRF2012-371Y CAD Model

Description

The Bourns SRF2012 common mode choke is a high-quality filter that is ideal for use in a wide range of electronic applications.

  • Series: SRF2012 series
  • Lines: Designed with two lines
  • Package: Tape and reel (TR), cut tape (CT)
  • Voltage Rating - DC: 50V
  • Current Rating (max): 280mA
  • Standard Package: 2,000
  • Mounting Style: SMD (SMT)
  • Impedance @ Frequency: 370 Ohms @ 100 MHz
  • DC Resistance (DCR) (max): 450mOhm
  • Package / Case: Horizontal, 4 PC pad
  • Temperature Range - Operating: -55°C ~ 125°C
  • Dimensions: 0.081" L x 0.049" W (2.05mm x 1.25mm)
  • Alternative Parts (cross-reference): SRF2012-371Y
  • ECCN: EAR99
