Same model may have multiple batches, images only for reference.

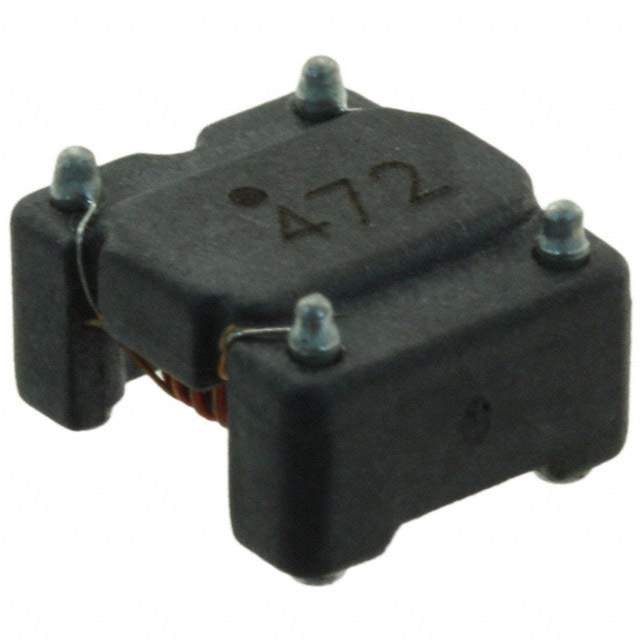

SRF1006-472Y Real Image
Same model may have multiple batches, images only for reference.

SRF1006-472Y

Part No SRF1006-472Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 4.7MH 250MA 2LN 6.2 KOHM SMD
Datasheet
SRF1006-472Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 6.2 kOhm @ 600kHz
Inductance @ Frequency 4.7mH @ 100kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 1 Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Height (Max) 0.256" (6.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 1101871-SRF1006-472Y
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Signal Processing, Audio, Imaging, Video & Vision, Consumer Electronics, Computers & Computer Peripherals, Defence, Military & Aerospace, Communications & Networking, Portable Devices, Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian SRF1006-472Y CAD Model

Description

The Bourns Inc. SRF1006-472Y is a signal line filter used in industrial, signal processing, audio, imaging, video & vision, consumer electronics, computers & computer peripherals, defence, military & aerospace, communications & networking, portable devices, sensing & instrumentation.

  • Voltage Rating: 50V
  • Current Rating: 250mA
  • Filter Type: Signal Line
  • Height: 0.256 inches (6.50mm)
  • Lines: 2
  • Impedance: 6.2 kOhm @ 600kHz
  • Inductance: 4.7mH @ 100kHz
  • DC Resistance (DCR) (Max): 1 Ohm
  • Packaging: Reel - TR
  • Temperature Range: -40°C to 105°C
