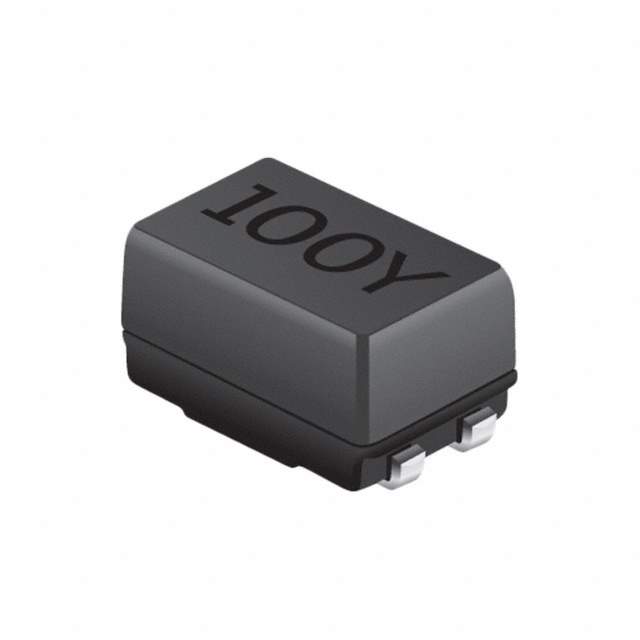

Same model may have multiple batches, images only for reference.

SRF0905A-471Y

Name: SRF0905A-471Y
Brand: Bourns Inc.
SKU: 1277162
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRF0905A-471Y
Manufacturer	Bourns Inc.
Catalog	Common Mode Chokes
Datasheet	SRF0905A-471Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	Bourns Inc.
Series	SRF0905A
Package	Tape & Reel
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	1 kOhms @ 2 MHz
Inductance @ Frequency	470 µH @ 100 kHz
Current Rating (Max)	1.1A
DC Resistance (DCR) (Max)	140mOhm
Voltage Rating - DC	80V
Temperature Range - Operating	-40°C ~ 105°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Dimension	0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max)	0.248" (6.30mm)
Package / Case	Horizontal, 4 PC Pad
Base Product Number	SRF0905A
Other Names	SRF0905A-471YCT,SRF0905A-471YDKR,SRF0905A-471YTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1277162-SRF0905A-471Y
Ultra Librarian 3D Model	Ultra Librarian SRF0905A-471Y CAD Model

Description

The Bourns SRF0905A common mode choke is a high-quality filter that is ideal for use in a wide range of electronic applications.

Series: SRF0905A
Lines: two lines
Package: tape and reel
Voltage Rating - DC: 80V
Current Rating (max): 1.1A
Standard Package: 1,000
Mounting Style: SMD (SMT)
Ratings: AEC-Q200
Filter Type: signal line
Impedance @ Frequency: 1 kOhms @ 2 MHz
Inductance @ Frequency: 470 µH @ 100 kHz
DC Resistance (DCR) (max): 140mOhm
Package / Case: horizontal, 4 PC pad
Temperature Range - Operating: -40°C ~ 105°C
Dimensions: 0.362" L x 0.236" W (9.20mm x 6.00mm)
Alternative Parts (cross-reference): SRF0905A-471Y
ECCN: EAR99
